Remove/install lamp carrier for taillamp - AR82.10-P-4906TX

MODEL 219.3 up to 2.3.08 except CODE (809) Model year 2009

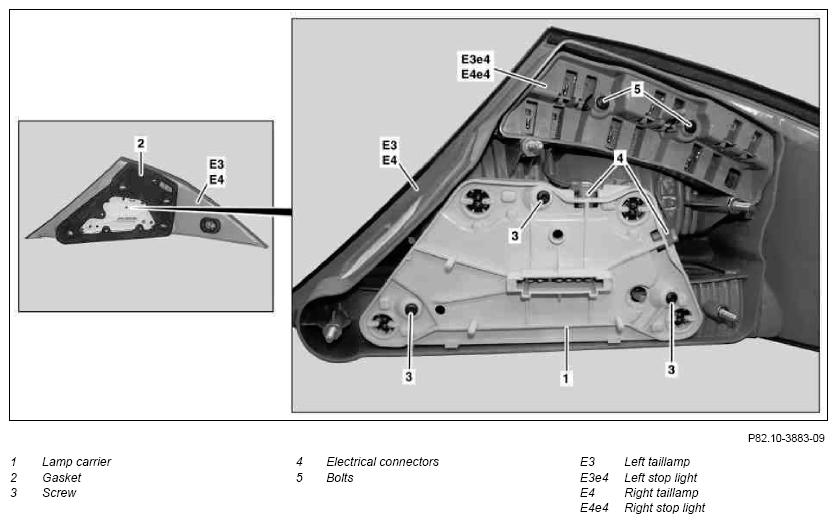

Fig 1: Identifying Taillamp Lamp Carrier Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

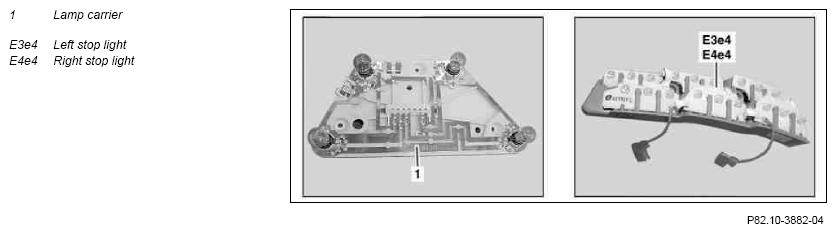

Fig 2: Identifying Taillamp Lamp Carrier Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left taillamp (E3) or right taillamp (E4)		AR82.10-P-4905TX
2	Remove seal (2)
3	Separate electrical connectors (4)
4	Remove bolts (3) and remove lamp carrier (1)	The lamp carrier bulbs (1) cannot be replaced separately.
5	Remove bolts (5) and remove left brake light (E3e4) or right brake light (E4e4)	The bulbs for the left brake light (E3e4) or right brake light (E4e4) cannot be replaced separately.
6	Install in the reverse order
