Remove/install headlamp cleaning system pump - AR82.35-P-6003TX

MODEL 219.3 with CODE (600) Headlamp cleaning system

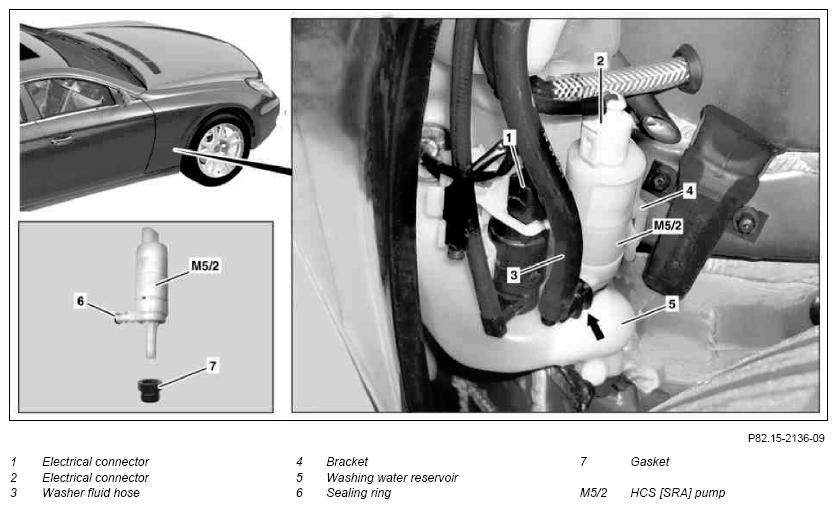

Fig 1: Identifying Headlamp Cleaning System Pump Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Lift vehicle on lifting platform.		AR00.60-P-1000TX
2	Remove the rear fender liner in the right front fender		AR88.10-P-1300TX
3	Unplug electrical connectors (1, 2)
4	Detach washer fluid hose (3) on HCS [SRA] pump (M5/2)	Press retaining clip (arrow). Collect washer fluid which flows out. Install new sealing ring (6).
5	Unclip bracket (4) from washer fluid reservoir (5)
6	Using mounting wedge, press HCS [SRA] pump (M5/2) from washer fluid reservoir (5)	Note correct installation positions.
			Figure
		Replace gasket (7).
7	Install in the reverse order
8	Fill washer fluid reservoir (5)
	Check windshield washing unit fluid level, top up if necessary		AP82.35-P-8210TX
9	Perform function check on HCS [SRA] pump (M5/2)
10	Perform function check on windshield washer fluid pump

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
