Remove/install bulbs of headlamp unit - AR82.10-P-1201TX

MODEL 219.3 with CODE (615) Bi-xenon headlamp unit with integrated curve illumination

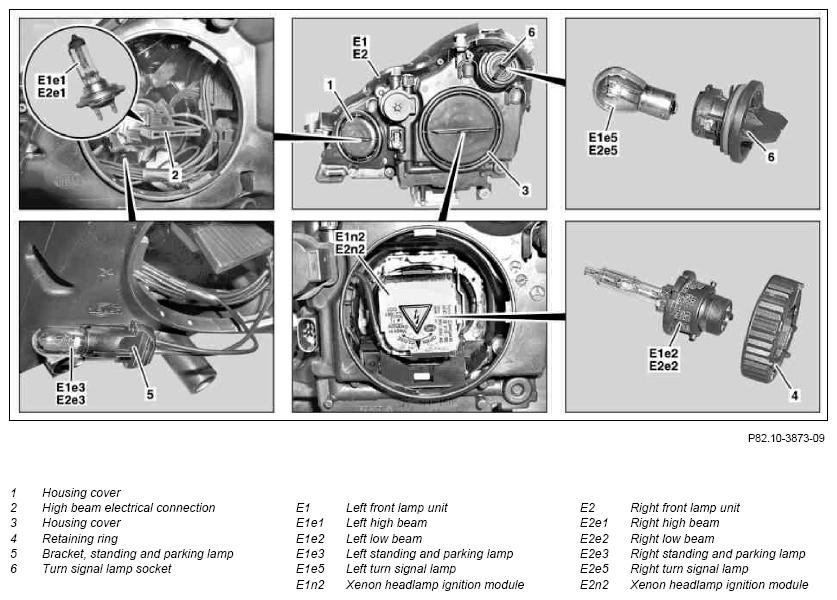

Fig 1: Identifying Headlamp Units Bulbs Remove/Install Components - Shown On Right Front Lamp Unit

Courtesy of MERCEDES-BENZ USA

Figure item, etc.	Work instructions
	Risk of death  caused by high voltage levels present at xenon headlamps. Risk of explosion/fire hazard  through highly flammable material in the area of damaged xenon bulbs Risk of injury  through UV light, hot components on xenon headlamps and glass splinters when xenon bulbs burst Risk of poisoning  through inhalation of mercury vapor and swallowing of or skin contact with toxic salts and mercury compounds	Do not come into contact with parts that are under high voltage. Persons with active electronic implants  (e.g. heart pacemakers) must never work on xenon headlamps. Switch off complete lighting system. Wear insulating safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure that the workplace is sufficiently ventilated.	AS82.10-Z-0001-01A
	Do not touch the glass bulb elements of the bulbs with fingers, but use a soft cloth free of oil and grease; otherwise the bulbs can be damaged by overheating during operation
	Switch off the exterior lights prior to making a bulb replacement in order to avoid a short circuit
	Switch off the ignition and remove the transmitter key from the EIS control unit	On vehicles with code (889) Keyless go: Press keyless go start/stop button repeatedly until ignition is switched off. Remove the transmitter key from the vehicle and store at a location that is beyond the transmitter range (at least 2 m).
E1e1, E2e1	Left high beam, right high beam	Remove housing cover (1), detach high beam electrical connection (2) and loosen mounting clamp.
E1e2, E2e2	Left low beam, right low beam	Remove case cover (3), remove xenon headlamp ignition module (E1n2, E2n2) and remove mounting ring (4).
E1e3, E2e3	Left standing and parking lamp, right standing and parking lamp	Turn bracket for standing and parking lamp (5) to the left and pull out of the left front lamp unit (E1) or right front lamp unit (E2).
E1e5, E2e5	Left turn signal lamp, right turn signal lamp	Twist turn signal lamp socket (6) to the left and remove.
