Remove/install Bluetooth antenna - AR82.62-P-8980TX
MODEL 219.3 up to 2.3.08 except CODE (809) Model year 2009 with CODE (386) Preinstallation for telephone "Handy", UPCI system with CODE (388) Telephone "Handy", UPCI system
| Remove/Install | |||
| 1 | Remove left side paneling in rear | AR68.30-P-4780TX | |

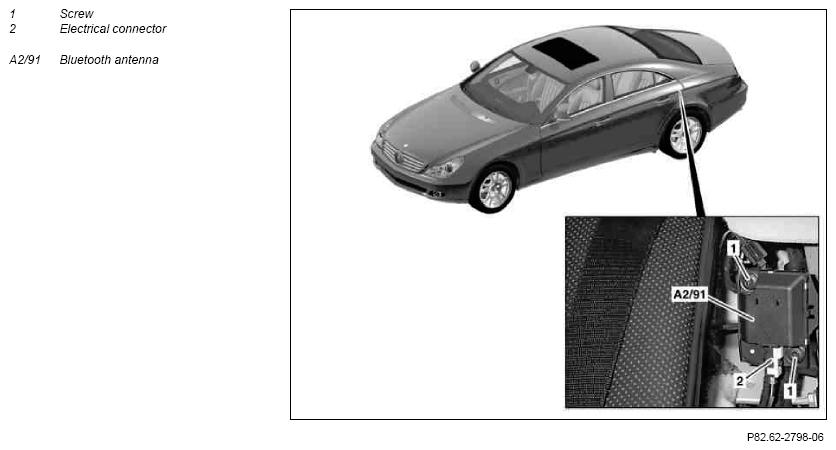

| 2 | Remove bolts (1) | ||
| 3 | Disconnect electrical connector (2) and remove Bluetooth antenna (A2/91) | ||
| 4 | Install in the reverse order |
