Remove/install accelerator pedal - AR30.12-P-1321TX

MODEL 219.3

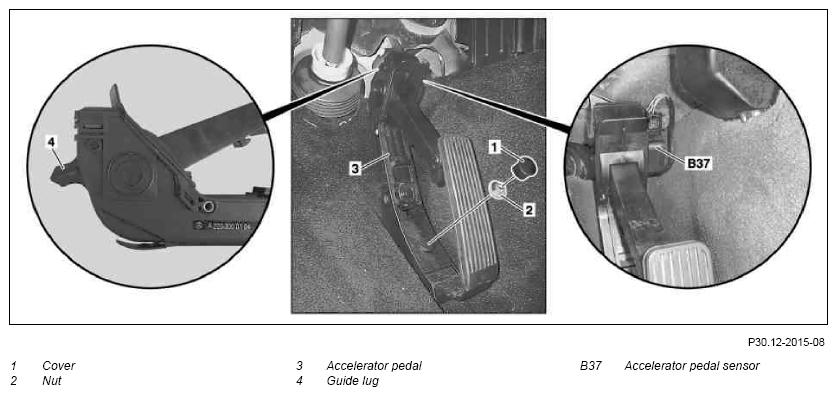

Fig 1: Accelerator Pedal Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove left cover below dashboard
2	Detach cover (1)
3	Unscrew nut (2)		*BA30.20-P-1001-03C
4	Separate electrical connector at the accelerator pedal sensor (B37)
5	Take out accelerator pedal (3)	The accelerator pedal (3) must not be disassembled. Otherwise, it will be damaged. The accelerator pedal (3) must be installed with the guide lug (4) in the firewall.
6	Install in the reverse order

ACCELERATOR PEDAL

Number	Designation		Model 219
BA30.20-P-1001-03C	Nut, accelerator pedal to floor panel	Nm	8
