Remove/install steering angle sensor - AR46.10-P-0300SX

MODEL 221.0 /1, 216

Fig 1: Identifying Steering Coupling, Jacket Tube, 36S Screw, Air Ducting, Heat Shield, Steering Column In/Out Motor And Steering Column Up/Down Motor

Courtesy of MERCEDES-BENZ USA

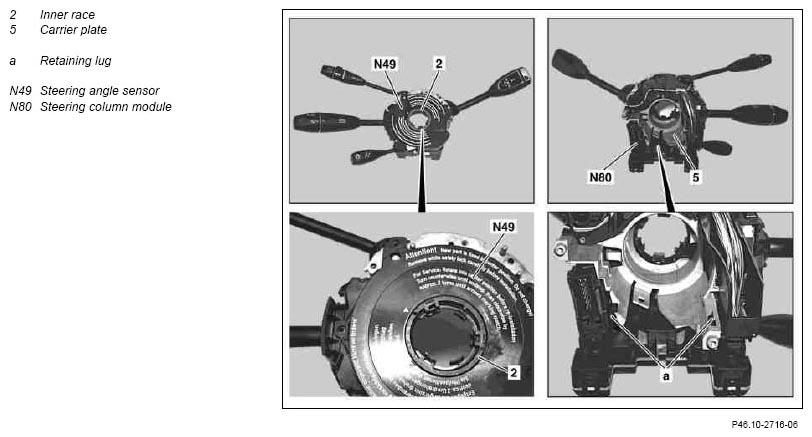

	Remove/install
	Steering angle sensor (N49) and steering column module (N80) form one component and can only be replaced together where necessary
1	Remove clock spring contact		AR46.10-P-0200SX
2	Unclip retaining lugs (a) of steering column module (N80) from carrier plate (5)
3	Remove steering angle sensor (N49) from carrier plate (5)	Installation: Check basic position of steering angle sensor (N49) (observe arrows on steering angle sensor (N49) and inner race (2). If the steering angle sensor (N49) twists, move the steering angle sensor (N49) into the center position before installing it again: ↓ Turn inner race (2) of steering angle sensor (N49) counterclockwise as far as the limit stop (turn gently against the limit stop, risk of damage), then turn clockwise approx. two revolutions until the arrows on the steering angle sensor (N49) and inner race (2) match up.
4	Install in the reverse order
5	Perform calibration of the backup camera using STAR DIAGNOSIS	Vehicles with code (218) Backup camera Follow the instructions under menu item "backup camera control unit".
6	Perform initialization of DTR control unit after replacing steering angle sensor, added	After replacing steering angle sensor (N49) on vehicles with code (219) Distronic (DTR) or code (233) DISTRONIC PLUS
