Adjust parking brake - AR42.20-P-0540T

WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211

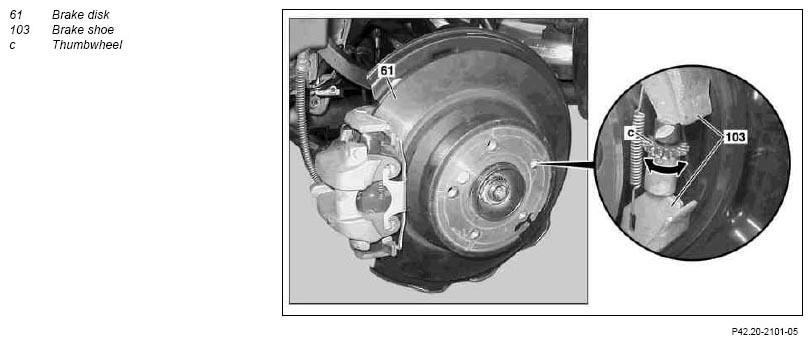

Fig 1: Adjusting Parking Brake

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

23.8.05

Clearance adjustment value changed to 10 teeth

Step 6

	Check
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the and position the four support plates below the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Check version of pedal assembly
	Parking brake pedal assembly modified		BT42.20-P-0510-01A
2	Operate parking brake pedal and check pedal travel of parking brake pedal	If the pedal travel is not within the tolerance range: ↓ Adjusting parking brake.
		Actuating force on parking brake pedal	*BE42.20-P-1001-01C
		Notches through which the parking brake pedal must be depressed	*BE42.20-P-1002-01C
	Remove
3	Unscrew one wheel bolt on the left and right rear wheel	Light alloy wheels must be removed due to the risk of damage.
	Remove/install wheels, rotate if necessary.		AP40.10-P-4050Z
4	Preloading automatic cable slack adjuster		AR42.20-P-0520-01A
	Adjust
5	Rotate adjusting wheel (c) by means of a screwdriver until the brake shoes (103) abut the parking brake drum and the rear wheel or brake disk (61) can no longer be turned by hand.	Adjustment direction for applying the brake shoes: Turn the left adjusting wheel (c) in the direction of travel and the right adjusting wheel (c) opposite to the direction of travel
6	Turn back adjusting wheel (c) by 10 teeth	Back off the left and right adjusting wheel (c) by the same number of teeth. It must be possible to rotate the rear wheel or brake disk (61) completely freely by hand.
7	Release automatic slack adjuster		AR42.20-P-0520-02A
	Check
8	Operate parking brake pedal several times and check pedal travel of the parking brake pedal, then release the parking brake	Actuating force on parking brake pedal	*BE42.20-P-1001-01C
8		Notches through which the parking brake pedal must be depressed	*BE42.20-P-1002-01C
9	Check for unobstructed movement of the rear wheels or brake disks (61)
	Install
10	Fit wheel bolts or light alloy wheels
	Remove/install wheels, rotate if necessary.		AP40.10-P-4050Z

PARKING BRAKE ADJUSTMENT VALUES

Number	Designation		Model 211, Pedal assembly with pulled notch	Model 211, Pedal assembly with pushed notch
BE42.20-P-1001-01C	Actuating force on parking brake pedal	N	130 (±50)	130 (±50)
BE42.20-P-1002-01C	Notches through which the parking brake pedal must be depressed	Quantity	1	5
BE42.20-P-1002-01C		See fig.	BT42.20-P-0510-01A	BT42.20-P-0510-01A
