Adjusting fixtures for distance and comparative measurement according to the model concerned - AR40.30-P-0401-01T

WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

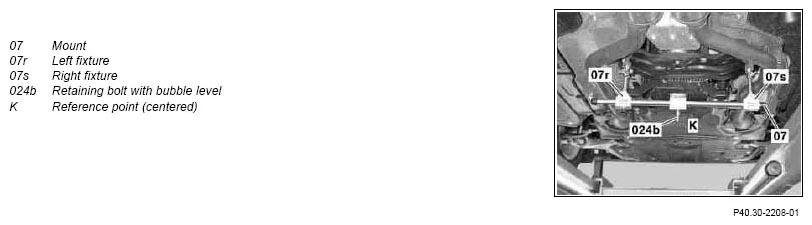

Fig 1: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Insert hanger (07) horizontal and adjust dimensions on the supports (07r, 07s), see Table.
The suspension (07) enables the vehicle center to be displayed with the check point (K).

Shown on model 211 without 4MATIC

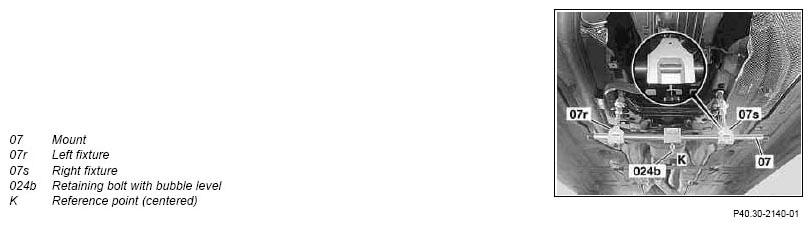

Fig 2: Inserting Hanger Horizontal (Shown On Model 211 Without 4MATIC)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211 with 4MATIC

Fig 3: Inserting Hanger Horizontal (Shown On Model 211 Without 4MATIC)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

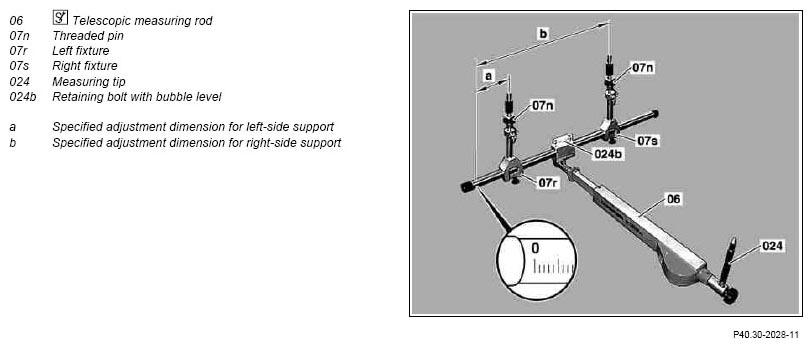

Fig 4: Identifying Left And Right Side Support Adjustment Dimensions

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Designation			Model 211 without 4MATIC, model 219	Model 211 with 4MATIC
Dimension	a	mm	45	45
Dimension	B	mm	410	505
