Remove/install rubber boots on rubber mount - AR33.15-P-0160-03T

WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

Variants of rubber mounts

Conventional rubber mount a = 45 mm
Rubber mount (hydro-mount) b = 60 mm

Fig 1: Identifying Conventional Rubber Mount And Rubber Mount (Hydro-Mount)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Only assemble rubber boots on hydro mounts (B). Assembly is not envisaged on conventional rubber mounts (A).

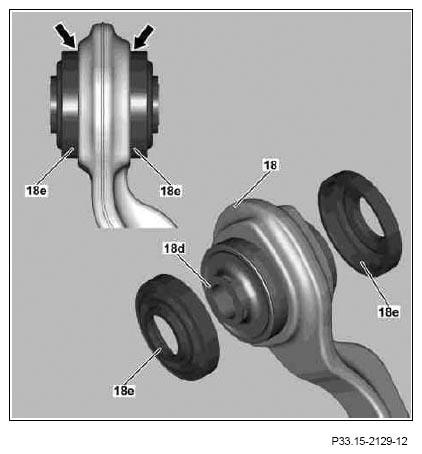

The rubber boots (18e) should be fitted to protect the hydro-mounts (18d) of the strut rod (18).

The rubber boots (18e) are not fitted ex works. The rubber mounts (18e) should be retrofitted for repair work on the strut rod (18) or hydro-mount (18d).

The rubber boots (18e) are only pushed over the bearing core and the bearing outer race of the hydro-mount (18d).

Attach rubber boot (18e) flush with the strut rod (18) (arrows).

Fig 2: Fitting Rubber Boots And Hydro-Mounts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
