Pressing track control arm from the stub axle assembly - AR33.15-P-0170-01R

WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

AR33.15-P-0170-01R	Pressing track control arm from the stub axle assembly
	Puller for pressing spring control arm out of steering knuckle	Model 230 with code (P99) Special model "AMG Black Series"	WF58.50-P-3315-01RBS

WHEEL LOCATION, HUB

Number	Designation			Model 211 except 211.08/09/28/29	Model 230 except code P99	Model 230 with code P99
BA33.20-P-1012-01A	Self-locking nut, track control arm to stub axle	Stage 1	Nm	50	50	50
BA33.20-P-1012-01A	Self-locking nut, track control arm to stub axle	Stage 2	∠°	60	60	60

Fig 1: Identifying Puller (220 589 00 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Press (163 589 03 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Thrust Piece (140 589 00 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Unscrew self-locking nut of spring control arm (17) at steering knuckle (5).
Screw the thrust washer (044a) onto the carrying joint.
Apply the puller (035).
Puller (035) for model

220 589 00 33 00 211, 230 without code (P99) Special model "AMG Black Series")

Illustrated on model 230.475

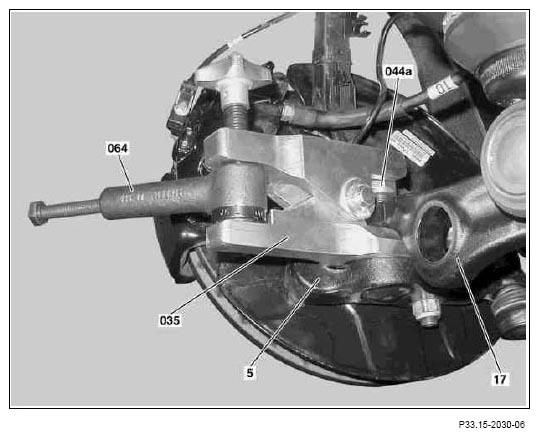

Fig 4: Pressing Spring Control Arm Out Of Steering Knuckle
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Use the press (064) to press the spring control arm (17) out of the steering knuckle (5) by turning the press spindle. Only model 211, 230 without code (P99) Special model "AMG Black Series".
Do not damage the rubber boot on the supporting joint when pressing out.
