Transfer bracket on A-pillar for front fender - AR88.10-P-1010-01T

WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1003-29A Hand riveter
WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A Drill (electric/pneumatic)
WE58.40-Z-1005-03A Wet/dry vacuum cleaner
  1. Unscrew bolts (1) and remove bracket (2)

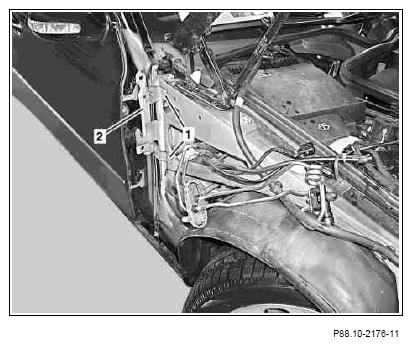

    Fig 1: Locating Bracket And Bolts
    G07265501Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  2. Check seam sealing (3) in repair area for damage and corrosion

    IMPORTANT If necessary, eliminate corrosion and repair seam sealing (3).

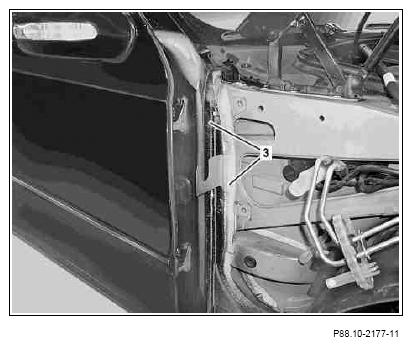

    Fig 2: Locating Seam Sealing In Repair Area
    G07265502Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  3. Position bracket (4) above stop (7) and chamfer (5) on bracket (6) and mark position of holes in bracket (4)
  4. Drill dia. 6.5 mm hole in bracket (6) and evacuate drilling chips.
  5. Prime holes
  6. Fasten bracket (4) with 2 rivets (8) and COMMERCIALLY AVAILABLE TOOLS hand riveter

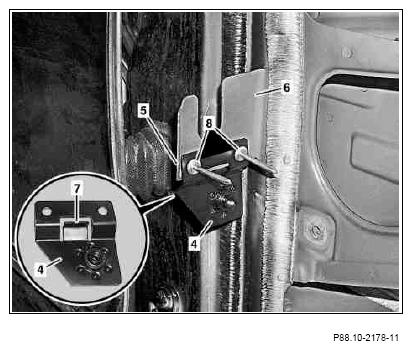

    Fig 3: Installing Transfer Bracket
    G07265503Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
