Adjust rear door - AR72.12-P-0650TA
WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.2
| Check | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |

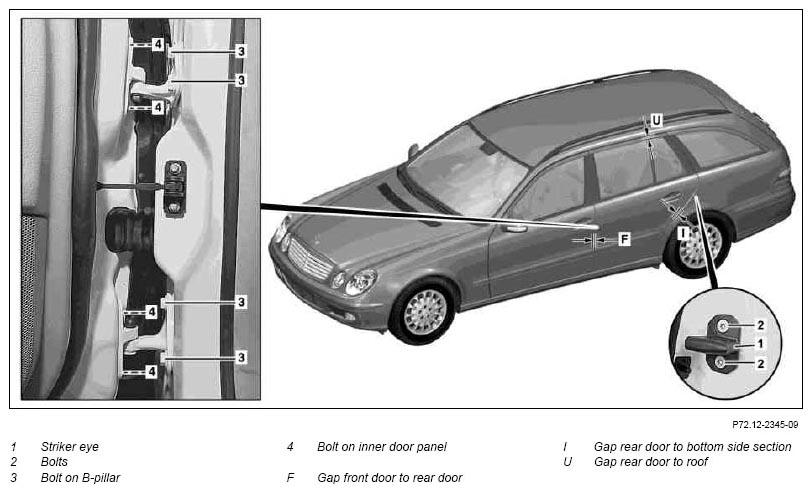

| 1 | Check gaps at front door all the way around | Gap front door to rear door (F) | *BE60.00-P-1002-01F |
| Gap rear door to bottom of side section (I) | |||
| Gap rear door to roof (U) | *BE60.00-P-1005-01F | ||
| *129589032100 | |||
| Adjust | |||
| 2 | Remove striker eye (1) | ||
| 3 | Loosen bolts on B-pillar (3) and adjust gap between front door and rear door (F), gap between rear door and lower side section (I) and gap between rear door and roof (U) by moving rear door | Gap front door to rear door (F) Gap rear door to bottom of side section (I) |
*BE60.00-P-1002-01F |
| Gap rear door to roof (U) | *BE60.00-P-1005-01F | ||
| *129589032100 | |||
| 4 | Tighten bolts on B-pillar (3) | *BA72.12-P-1010-01A | |
| 5 | Loosen bolts on inner door panel (4) and adjust transition of rear door in relation to front door at hinge side by moving rear door | ||
| 6 | Tighten inner door panel bolts (4) | *BA72.12-P-1011-01A | |
| 7 | Install striker eye (1) | ||
| 8 | Completely close rear door and adjust transition of rear door in relation to rear fender and C-pillar by moving striker eye (1) | ||
| 9 | Tighten bolts (2) | *BA72.12-P-1003-01A |
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS
| Number | Designation | Model 211.2 | |||
|---|---|---|---|---|---|
| BE60.00-P-1002-01F | Gap dimension | Front door to A-pillar | Dimension "D" | mm | 4.5 (-0.5/+1) |
| Front door to fender | Dimension "E" | mm | 4 (-0.5/+1) | ||
| Front door to rear door | Dimension "F" | mm | 4 (-0.5/+1) | ||
| Front door to roof | Dimension "G" | mm | 4.5 (-0.5/+1) | ||
| Rear door to top of side section | Dimension "H" | mm | - | ||
| Rear door to side section, bottom | Dimension "I" | mm | 3.5 (-0.5/+1) | ||
| For figure, see | AR60.00-P-0700-01TA | ||||
| BE60.00-P-1005-01F | Gap dimension | Rear-end door spoiler to roof | Dimension "P" | mm | 7 (-0.5/+1) |
| Rear-end door to rear fender | Dimension "Q" | mm | 4.5 (±1) | ||
| Taillamp in rear door to taillamp | Dimension "R" | mm | 5 (±1) | ||
| Rear-end door to bumper | Dimension "S" | mm | 6 (±1.5) | ||
| Rear window to D-pillar | Dimension "T" | mm | 4.5 (±1) | ||
| Front door to roof | Dimension "U" | mm | 4.5 (-0.5/+1) | ||
| For figure, see | AR60.00-P-0700-01TA |
REAR DOOR
| Number | Designation | Model 211 | |
|---|---|---|---|
| BA72.12-P-1003-01A | Bolts to striker eye | Nm | 28 |
| BA72.12-P-1010-01A | Bolt, door hinge assembly to B-pillar | Nm | 30 |
| BA72.12-P-1011-01A | Bolt, door hinge assembly to rear door | Nm | 32 |
