Turn rack-and-pinion steering to center position, mount steering coupling - AR46.20-P-0600-01P

WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

Turn rack-and-pinion steering to center position.
Turn so that the marking on cap is in alignment with the marking on the control valve housing (arrows).
Mount steering coupling.

Shown on model 203

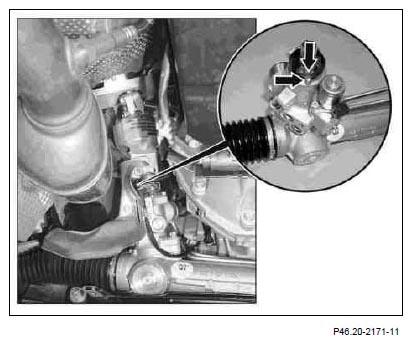

Fig 1: Locating Control Valve Housing Alignment Marks - Shown On Model 203

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 220 with 4MATIC

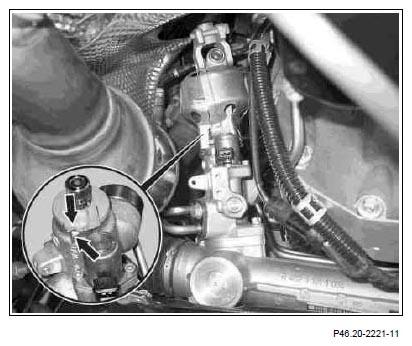

Fig 2: Locating Control Valve Housing Alignment Marks - Shown On Model 220 With 4MATIC

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211 with 4MATIC

Fig 3: Locating Control Valve Housing Alignment Marks - Shown On Model 211 With 4MATIC

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
