Check and correct power steering fluid level - AP46.00-P-4611BB

WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 129.059/064/068

MODEL 163.154/157/172/174/175

MODEL 168, 170, 208, 210

MODEL 202 as of 1.9.95

MODEL 211.041/042/052/054/056/057/061/065/070/072/076/077/080/082/083/084/087/089/090/092/241/242/252/254/256/257/261/265/270/272/276/277/280/282/283/284/287/289/290/292

MODEL 220 except CODE (487) Active Body Control (ABC)

MODEL 230 except CODE (487) Active Body Control (ABC)

MODEL 230.479 with CODE (P99) Special model "AMG Black Series"

MODEL 414.700

Shown on model 220

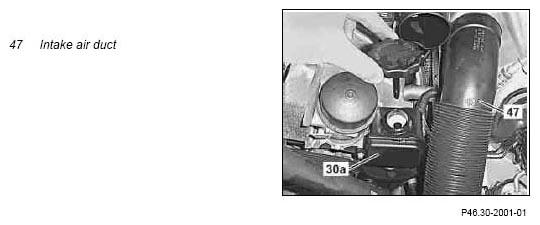

Fig 1: Removing Power Steering Fluid Reservoir Cap (Shown On Model 220)

G07274661

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.056

Fig 2: Removing Power Steering Fluid Reservoir Cap (Shown On Model 211.056)

G07274662

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.042

Fig 3: Identifying Power Steering Fluid Reservoir (Shown On Model 211.042)

G07274663

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 220

Fig 4: Removing Cover Of Power Steering Pump (Shown On Model 220)

G07274664

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211 with engine 156

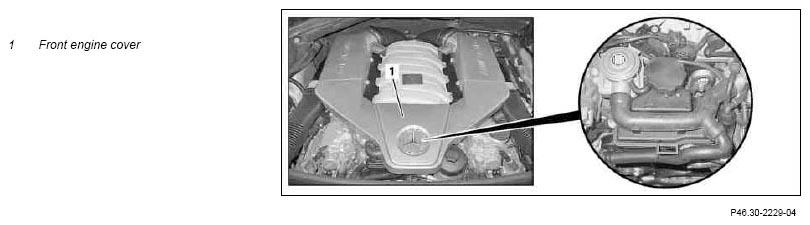

Fig 5: Locating Power Steering Fluid Reservoir (Shown On Model 211 With Engine 156)

G07274665

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown model 210 with code (480) Level control on rear axle

Fig 6: Checking/Correcting Power Steering Fluid Level (Shown Model 210 With Code 480 Level Control On Rear Axle)

G07274666

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Right picture: Shown model 230.479 with code (P99) Special model "AMG Black Series"

Fig 7: View Of Power Steering Fluid Reservoir Cap (Shown Model 230.479 With Code P99)

G07274667

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shows model 168

Fig 8: Identifying Cap (Model 168)

G07274668

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

18.10.07

Material damage note for removal of front engine cover, added

Step 1.3

	Removing
	Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid	Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Before opening the hydraulic circuit of the power steering, thoroughly clean the surrounding area of the separation point. Even the smallest dirt particles introduced into the hydraulic components can lead to malfunctions and damage to the power steering
1.1	Remove cover of charge air manifold with cover above power steering pump	Model 220.025/125 with engine 648.960 Model 220.026/126 with engine 613.960	AR01.20-P-5014-02C
1.2	Pull off intake air duct (47)	Except model 211 with engine 156, 271, 272, 642, Except model 230.454/456/458, Except model 230.479 with code (P99) Special model "AMG Black Series"
1.3	Remove front engine cover (1)	Model 211 with engine 156 To prevent damage and scratches, lift front engine cover (1) straight up and out without tilting it and place it on a padded base.
	Checking
2	Check fluid level in expansion reservoir, adjust to correct level if necessary	Observe temperature specification and fill level marking on dipstick. If there is no temperature specification, read off the fluid level at an oil temperature of approx. 20°C. If the fluid level is too low, determine cause and eliminate subject to a separate order.
		Power steering	*BF46.20-P-1001-01A
3	Level control, 4-MATIC, ASD, ADS - check/correct fluid level	Model 210 with code (480) Level control on rear axle, model 210 with code (217) Level control on rear axle with ADS If the fluid level is too low, determine cause and eliminate subject to a separate order.	AP32.30-P-3211BB
	Central hydraulic fluids	Sheet 344.0	BB00.40-P-0344-00A
	Install
4.1	Remove cover of charge air manifold with cover above power steering pump	Model 220.025/125 with engine 648.960 Model 220.026/126 with engine 613.960 Engine 613	AR01.20-P-5014-02C
			*BA01.20-P-1002-01A
			*BA01.20-P-1003-01A
		Engine 648
			*BA01.20-P-1002-01G
			*BA01.20-P-1003-01G
4.2	Mount intake air duct (47)	Except model 211 with engine 156, 271, 272, 273, 642, except model 230.454/456/458, except model 230.479 with code (P99) Special model "AMG Black Series"
4.3	Install front engine cover (1)	Model 211 with engine 156

CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number	Designation		Engine 613.960/961
BA01.20-P-1002-01A	Bolt, trim panel of cylinder head cover to cylinder head cover	Nm	10
BA01.20-P-1003-01A	Bolt, charge air distribution pipe cover to charge air manifold	Nm	10

CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number	Designation		Engine 648
BA01.20-P-1002-01G	Bolt, cylinder head cover trim to cylinder head	Nm	9
BA01.20-P-1003-01G	Bolt, cover to charge air manifold.	Nm	9

STEERING GEAR

Number	Designation			Model 129	Model 163	Model 168
BF46.20-P-1001-01A	Power steering	Filling capacity	Liters	≈1,0	≈1,2	≈0.8
BF46.20-P-1001-01A	Power steering	MB steering gear oil	Sheet	BB00.40-P-0236-03A	BB00.40-P-0236-03A	BB00.40-P-0345-00A

STEERING GEAR

Number	Designation			Model 170	Model 202	Model 208
BF46.20-P-1001-01A	Power steering	Filling capacity	Liters	≈1,0	≈1,0	≈1,0
BF46.20-P-1001-01A	Power steering	MB steering gear oil	Sheet	BB00.40-P-0236-03A	BB00.40-P-0236-03A	BB00.40-P-0236-03A

STEERING GEAR

Number	Designation			Model 210	Model 211	Model 220 without code 487
BF46.20-P-1001-01A	Power steering	Filling capacity	Liters	≈1,0	≈1,1	≈1,0
BF46.20-P-1001-01A	Power steering	MB steering gear oil	Sheet	BB00.40-P-0236-03A	BB00.40-P-0345-00A	BB00.40-P-0345-00A

STEERING GEAR

Number	Designation			Model 230 without code 487	Model 414.700
BF46.20-P-1001-01A	Power steering	Filling capacity	Liters	≈1,0	≈0.8
BF46.20-P-1001-01A	Power steering	MB steering gear oil	Sheet	BB00.40-P-0345-00A	BB00.40-P-0345-00A
