Remove/install engine hood catch - AR88.40-P-3200T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2/6
MODIFICATION NOTES
| 28.1.04 | Disconnect/connect ground line on battery |
| Remove/Install | |||
| Risk of injury to fingers being jammed or pinched when Remove/install or aligning hoods, doors, trunk lid/tailgate or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |

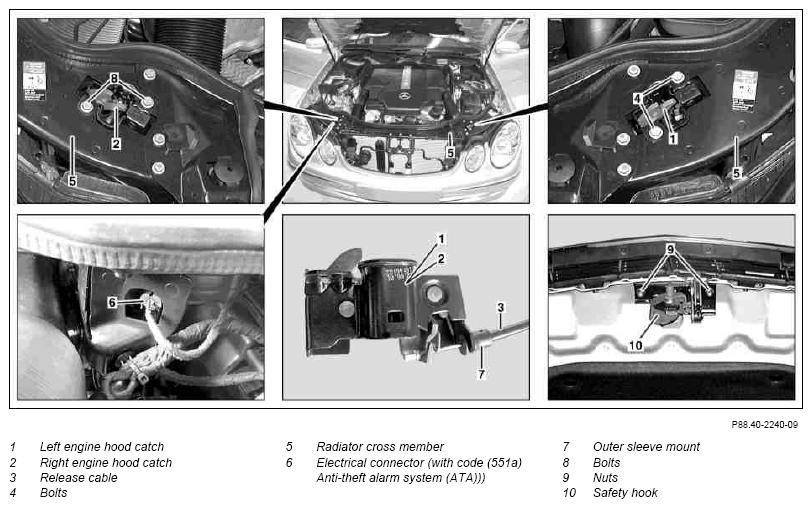

| 1 | Open engine hood | ||
| 2 | Unhook release cable (3) from left engine hood catch (1) | ||
| 3 | Unscrew bolts (4) and remove left engine hood catch (1) from radiator cross member (5) upward | *BA88.40-P-1003-01A | |
| 4.1 | Disconnect electrical connector (6) from right engine hood catch (2) | On vehicles with code (551a) Anti-theft alarm (ATA) | |
| 5 | Unclip outer sleeve mount (7) from release cable (3) on right engine hood catch (2) | ||
| 6 | Unscrew bolts (8) and remove right engine hood catch (2) from radiator cross member (5) upward | *BA88.40-P-1003-01A | |
| 7 | Unhook release cable (3) from right engine hood catch (2) and remove right engine hood catch (2) | ||
| 8 | Unscrew nuts (9) and remove retaining hook (10) | *BA88.40-P-1009-01A | |
| 9 | Install in the reverse order |
ENGINE HOOD
| Number | Designation | Model 211 | |
|---|---|---|---|
| BA88.40-P-1003-01A | Bolt to engine hood catch | Nm | 8 |
| BA88.40-P-1009-01A | Bolt, safety hook to engine hood | Nm | 8 |
