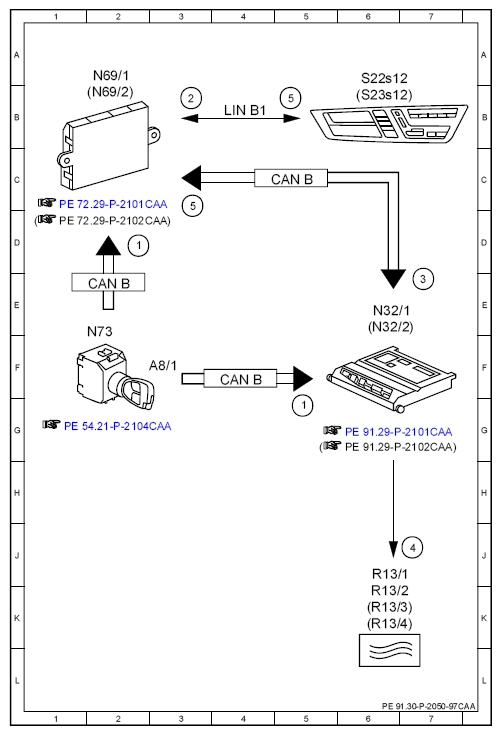

| 1 |
Circuit 15, status |
|
| 1 |
Circuit 15, status |
|
| 2 |
Heated seat switch, status |
|
| 3 |
Seat heater, request |
|
| 4 |
Seat heater, actuation |
|
| 5 |
Seat heater status indication, signal |
|
| 5 |
Seat heater status indication, signal |
|
| A8/1 |
Transmitter key |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| LIN B1 |
Front door LIN |
|
| N32/1 |
Left front seat control unit |
|
| N32/2 |
Right front seat control unit |
|
| N69/1 |
Left door control unit |
|
| N69/2 |
Right door control unit |
|
| N73 |
EIS [EZS] control unit |
|
| R13/1 |
Left front seat heated cushion |
|
| R13/2 |
Left front backrest heated cushion |
|
| R13/3 |
Right front seat heated cushion |
|
| R13/4 |
Right front backrest heated cushion |
|
| S22s12 |
Heated seat switch |
|
| S23s12 |
Heated seat switch |
|
