| 1 |
Circuit 15R/circuit 15, status ON |
|
| 1 |
Circuit 15R/circuit 15, status ON |
|
| 2 |
FDS submenu display, status |
19F |
| 3 |
Multicontour seat adjustment, request |
17H |
| 3 |
Multicontour seat adjustment, request |
|
| 3 |
Multicontour seat adjustment, request |
|
| 4 |
Adjust or store memory position, request |
10E |
| 4 |
Adjust or store memory position, request |
17B |
| 4 |
Adjust or store memory position, request |
11B |
| 5 |
Compressed air supply, request |
3B |
| 6 |
Multicontour seat pneumatic pump, status |
7F |
| A40/10 |
SPLITVIEW display |
20E |
| A40/3 |
COMMAND control unit |
16E |
| A40/8 |
COMMAND display |
20E |
| A40/9 |
Front central operating unit |
20J |
| A8/1 |
Transmitter key |
3F |
| CAN A |
Telematics CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN F |
Central CAN |
|
| Code 867 |
SPLITVIEW |
|
| LIN B1 |
Front door LIN |
|

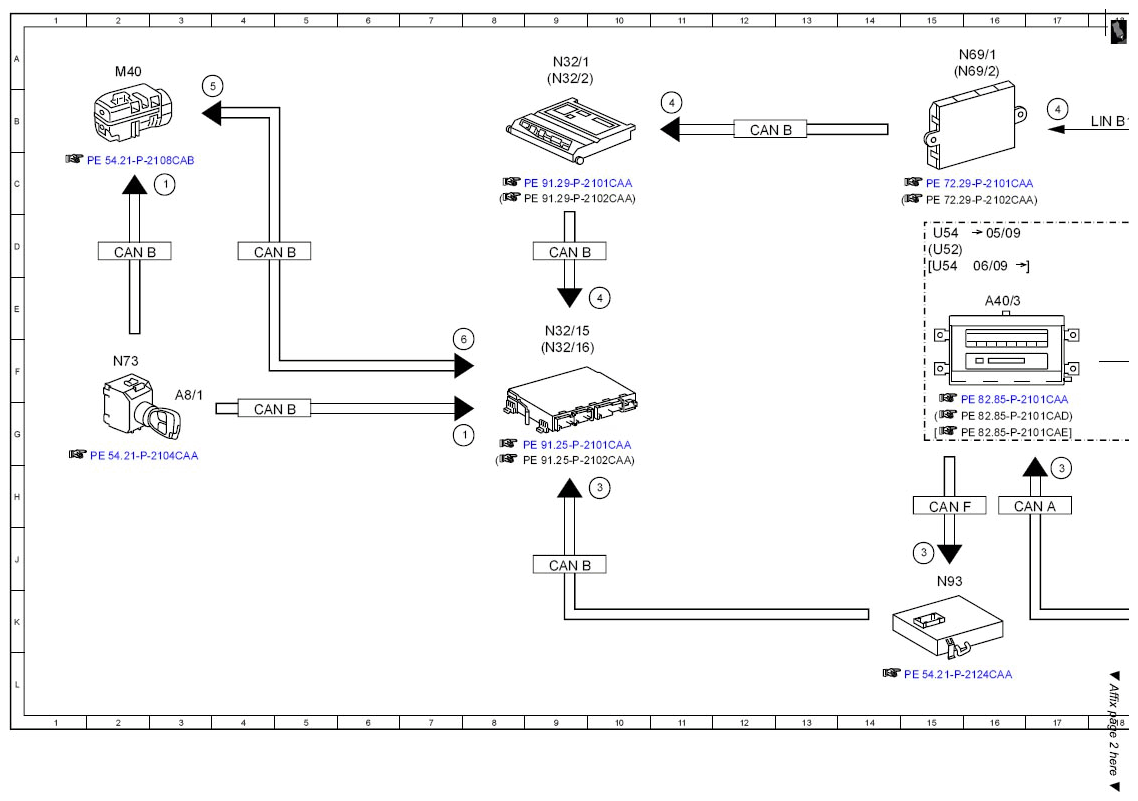

| M40 |
Multicontour seat pneumatic pump |
2A |
| N32/1 |
Left front seat control unit |
9A |
| N32/15 |
Left front multicontour backrest control unit |
9E |
| N32/16 |
Right front multicontour backrest control unit |
9F |
| N32/2 |
Right front seat control unit |
9A |
| N69/1 |
Left door control unit |
16A |
| N69/2 |
Right door control unit |
16A |
| N73 |
EIS [EZS] control unit |
2F |
| N93 |
Central gateway control unit |
15J |

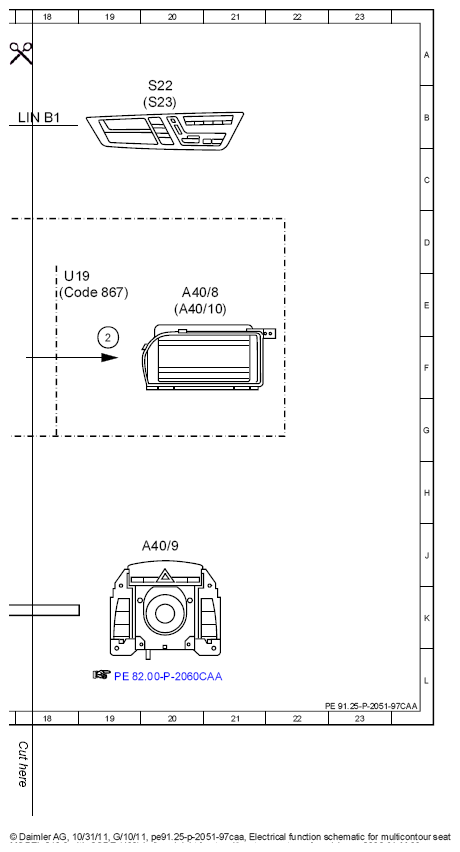

| S22 |
Left front seat operation switch group |
20B |
| S23 |
Right front seat operation switch group |
20B |
| U19 |
Valid for standard equipment |
18E |
| U52 |
Valid for Japan |
15D |
| U54 |
Valid for all except Japan |
15D |
