Garage door opener, location of components - GF68.05-P-0001-01LE

Shown on model 221.0

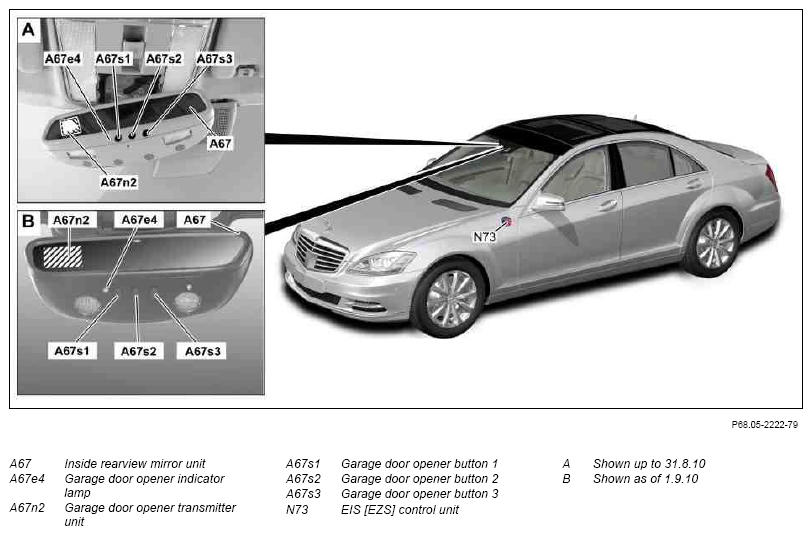

Fig 1: Identifying Garage Door Opener Components Location

G07510932

Courtesy of MERCEDES-BENZ USA
