Remove/install cover on center console - AR68.20-P-2350SC

MODEL 216.3

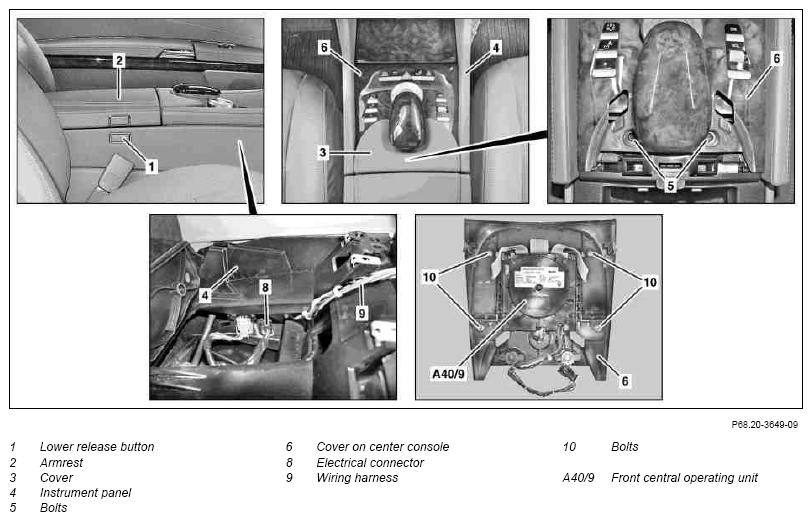

Fig 1: Identifying Center Console Cover Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and withdraw transmitter key or Keyless Go start/stop button from the EIS [EZS] control unit	Keyless Go start/stop button only for vehicles with code (889) Keyless Go.
2	Remove turn/push control		AR54.21-P-0501SX
3	Press lower release button (1) and fold armrest (2) upright toward rear
4	Unclip cover (3) from instrument panel (4)		Fig 2
5	Remove bolts (5)
6	Manually unclip cover on center console (6) upward in front area.
7	Disconnect electrical connector (8) and unclip plug on electrical connector (8) from instrument panel (4).
8	Guide electric wiring harness (9) out of instrument panel (4) and remove cover on center console (6) with central front control unit (A40/9).	Installation:  Ensure that electric wiring harness (9) is routed correctly
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
9	Unscrew bolts (10) and remove central front control unit (A40/9) from cover on center console (6).	Only when replacing cover on center console (6).
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
10	Install in the reverse order

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
