Disassemble/assemble center console - AR68.20-P-2150SC
MODEL 216.3

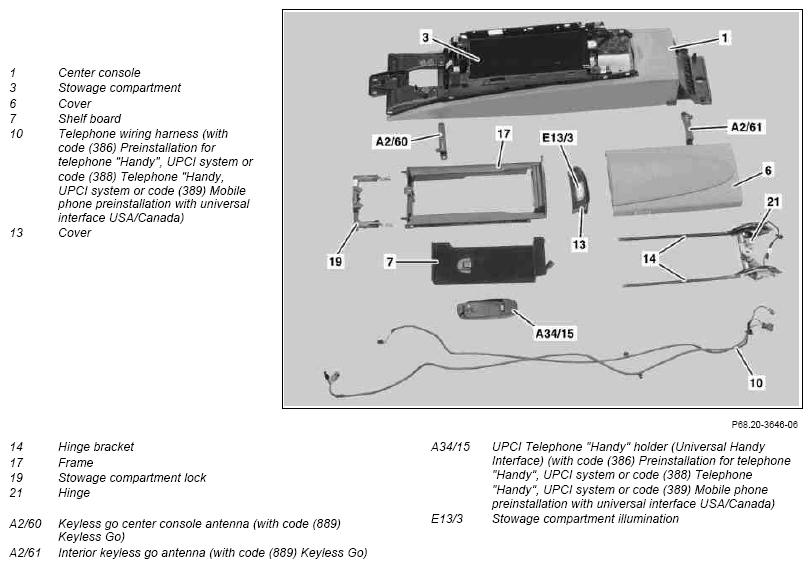

Shown on disassembled center console, with code (386) Preinstallation for telephone "Handy", UPCI system)

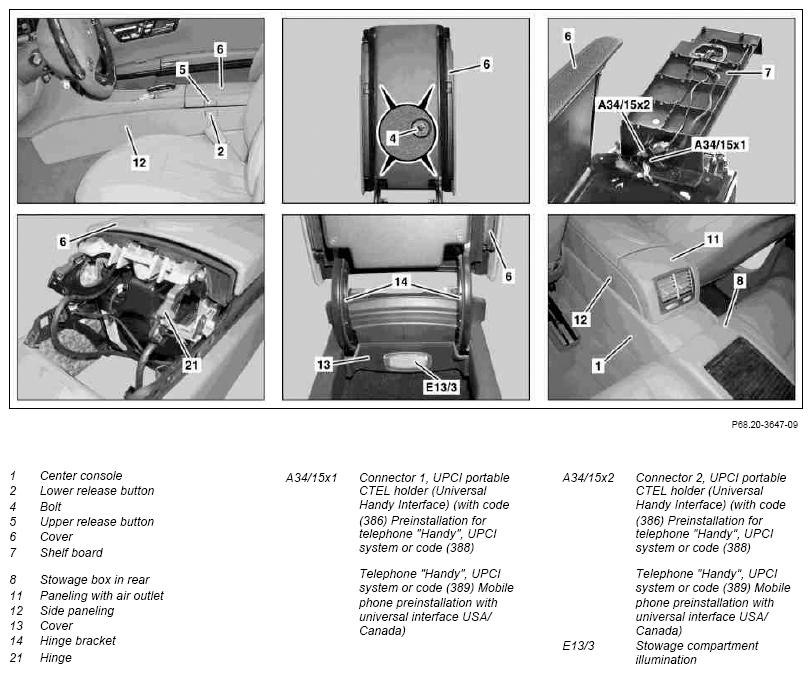

Shown with code (386) Preinstallation for telephone "Handy", UPCI system)

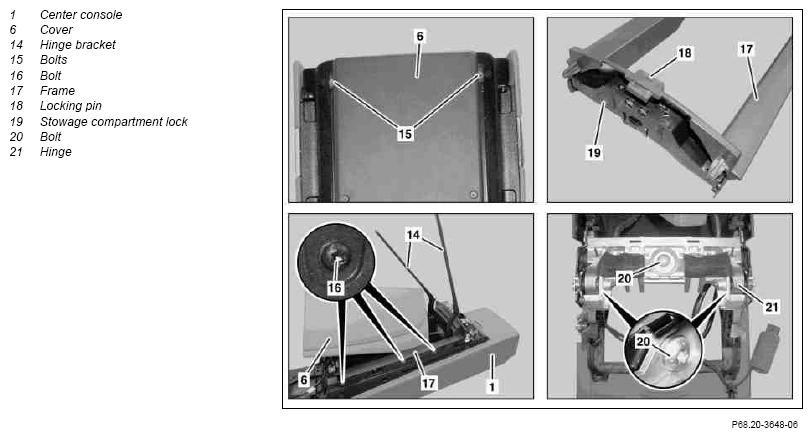

Fig 3: Identifying Center Console, Cover, Hinge Bracket, Bolts, Frame, Locking Pin, Stowage Compartment Lock And Hinge
| Disassemble/assemble | |||
| 1.1 | Remove center console (1) | Only when removing telephone wiring harness (10) or cover (6) on vehicles with Code (386) Preinstallation for telephone "Handy", UPCI system or Code (388) Telephone "Handy", UPCI system or Code (389) Mobile phone preinstallation with universal interface USA/Canada. |
AR68.20-P-2000SC |
| 2 | Press release button (2) and open stowage compartment (3). | ||
| 3 | Remove bolts (4) | ||
| 4 | Close stowage compartment (3) | ||
| 5 | Press upper release button (5) and open cover (6). | ||
| 6.1 | Unclip UPCI Telephone "Handy" holder (universal Handy Interface) (A34/15) from shelf board (7). | On vehicles with Code (386) Preinstallation for telephone "Handy", UPCI system or Code (388) Telephone "Handy", UPCI system or Code (389) Mobile phone preinstallation with universal interface USA/Canada |
|
| 7 | Pull up shelf board (7) in front area with pulling hook and fold up toward rear. | Fig 4 | |
| 8.1 | Disconnect connector 1, UPCI Telephone "Handy" holder (Universal Handy Interface) (A34/15x1) and Connector 2, UPCI portable CTEL holder (Universal Handy Interface) (A34/15x2). | On vehicles with Code (386) Preinstallation for telephone "Handy", UPCI system or Code (388) Telephone "Handy", UPCI system or Code (389) Mobile phone preinstallation with universal interface USA/Canada |
|
| 9 | Remove shelf board (7). | ||
| 10.1 | Remove rear seat cushion | Only when removing Interior keyless go antenna (A2/61) on vehicles with Code (889) Keyless Go | AR91.12-P-1020SC |
| 11.1 | Remove shelf board in rear (8). | Only when removing Interior keyless go antenna (A2/61) on vehicles with Code (889) Keyless Go | |
| 12.1 | Remove interior Keyless Go antenna (A2/61) from center console (1). | On vehicles with code (889) Keyless go | |
| 13 | Remove paneling with air outlet (11). | ||
| 14 | Remove left and right side paneling (12) from center console (1). | ||
| 15.1 | Remove center console Keyless Go antenna (A2/60) from center console (1). | On vehicles with code (889) Keyless go | |
| 16 | Press release button (2) and open stowage compartment (3). | ||
| 17 | Unclip cover (13) and disconnect electrical connector from stowage compartment illumination (E13/3). | ||
| 18.1 | Close stowage compartment (3) and remove telephone wiring harness (10) from both hinge levers (14). | On vehicles with Code (386) Preinstallation for telephone "Handy", UPCI system or Code (388) Telephone "Handy", UPCI system or Code (389) Mobile phone preinstallation with universal interface USA/Canada |
|
| 19.1 | Unscrew bolts (15) and remove cover (6) upward from both hinge levers (14). | On vehicles without Code (386) Preinstallation for telephone "Handy", UPCI system or without Code (388) Telephone "Handy", UPCI system or without Code (389) Mobile phone preinstallation with universal interface USA/Canada |
|
| 19.2 | Unscrew bolts (15), remove cover (6) upward from both hinge levers (14) and lay down toward front in stowage compartment (3) with telephone wiring harness (10) installed. | On vehicles with Code (386) Preinstallation for telephone "Handy", UPCI system or Code (388) Telephone "Handy", UPCI system or Code (389) Mobile phone preinstallation with universal interface USA/Canada |
|
| 20 | Unscrew bolts (16) on left and right side of center console (1) and remove frame (17). | ||
| 21 | Press down lock pin (18) and unclip stowage compartment lock (19) toward front from frame (17). | ||
| 22 | Remove bolts (20) | ||
| 23 | Unclip hinge (21) toward rear from center console (1). | ||
| 24.1 | Remove telephone wiring harness (10) from bottom side of center console (1). | On vehicles with Code (386) Preinstallation for telephone "Handy", UPCI system or Code (388) Telephone "Handy", UPCI system or Code (389) Mobile phone preinstallation with universal interface USA/Canada |
|
| 25.1 | Pull telephone wiring harness (10) out of cover (6). | On vehicles with Code (386) Preinstallation for telephone "Handy", UPCI system or Code (388) Telephone "Handy", UPCI system or Code (389) Mobile phone preinstallation with universal interface USA/Canada |
|
| 26 | Assemble in the reverse order |
