Retrofit cup holder - AN68.20-P-0002SC

MODEL 216.3## 1#

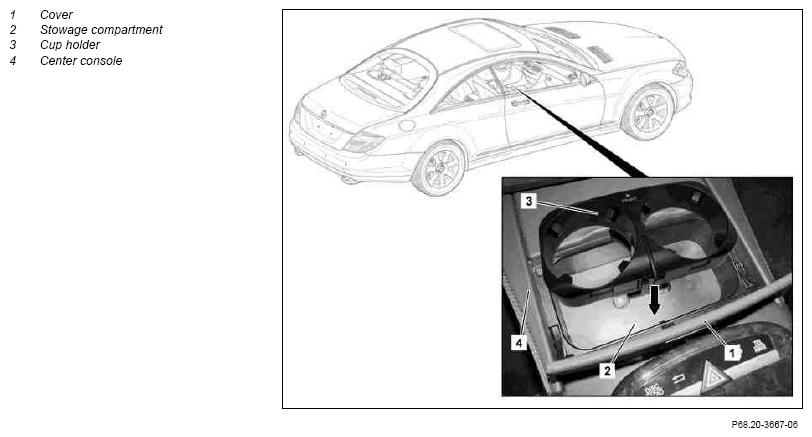

Fig 1: Identifying Cover, Stowage Compartment, Cup Holder And Center Console

Courtesy of MERCEDES-BENZ USA

	Install
1	Open cover (1)
2	Insert cup holder (3) in stowage compartment (2) (arrow).	Observe direction of installation of cup holder (3).
3	Close cover (1)	When the cover (1) is closed, the cup holder (3) lowers automatically.
	Concluding the work
4	Enter special equipment in the vehicle data card and in the vehicle's online data card	Front cup holder, code 310.

PARTS ORDERING NOTES

Part no.	Designation	Quantity
Design group 99 (see EPC)	Cup holder	1
