PARKTRONIC block diagram - GF54.65-P-0003-02LE

MODEL 216.3 up to 31.8.10 as of Model Year 2009 /AEJ 08

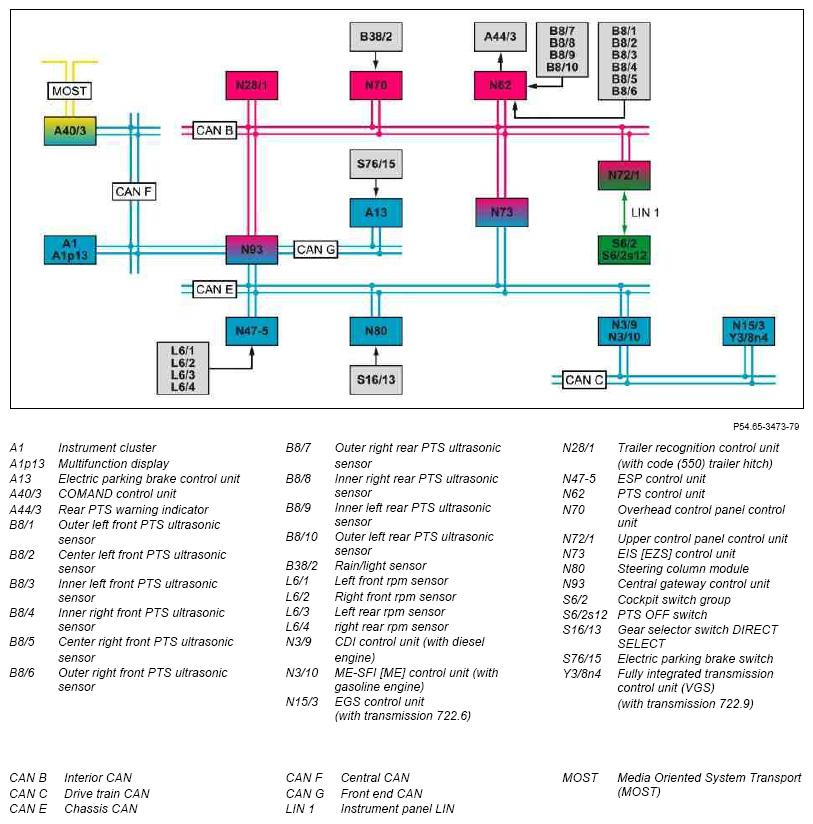

Fig 1: Parktronic Block Diagram
G07301196Courtesy of MERCEDES-BENZ USA
