Backup camera (RFK) location of components - GF54.65-P-0005-01SX

MODEL 221.0 /1, 216.3 with CODE (218) Backup camera up to Model Year 8

Shown on model 221.0

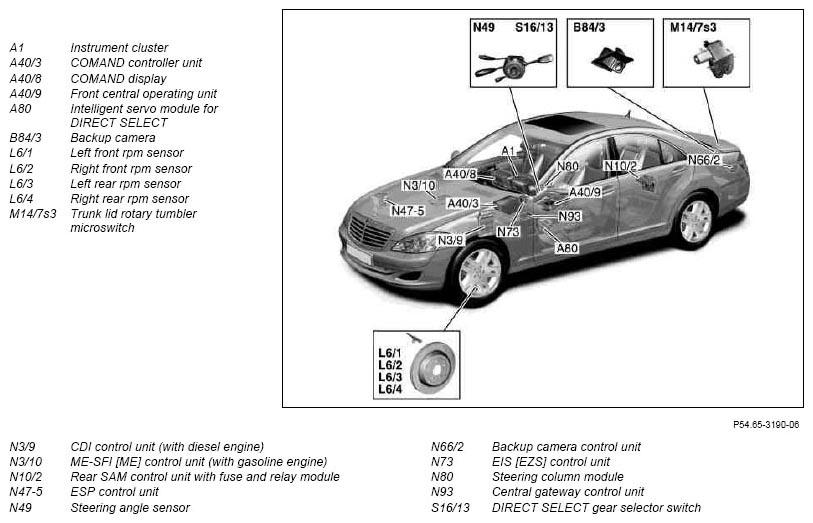

Fig 1: Locating Backup Camera Components
G07301200Courtesy of MERCEDES-BENZ USA
