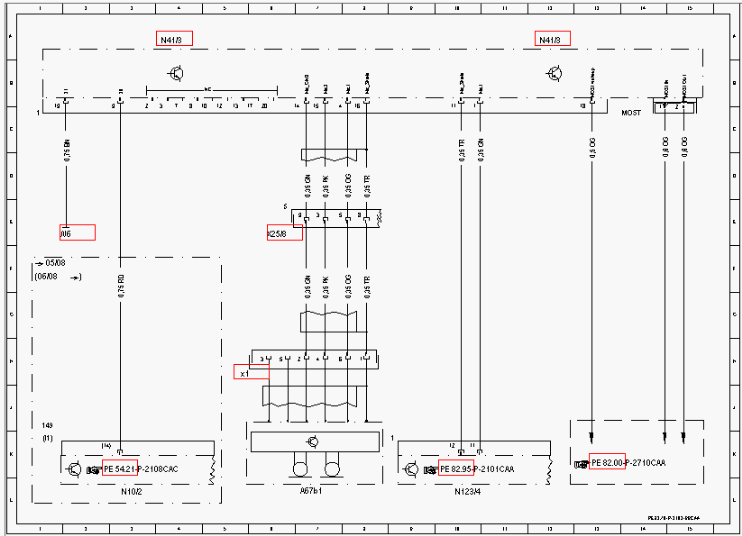

Voice control system (VCS [SBS]) control unit wiring diagram - PE82.70-P-2102-99CAA
MODEL 216.3 with CODE (813) Voice control system (VCS [SBS]) up to model year 2010 /YoM 09 control unit N41/3
| Code | Designation | Location |
|---|---|---|
| A67b1 | Hands-free system microphone group | 7L |
| A67b1x1 | Hands-free system microphone group connector | 5H |
| N10/2 | Rear SAM control module with fuse and relay module | 3L |
| N123/4 | Emergency call system control unit | 10L |
| H4/72 | Left door Sound woofer and midrange speaker group | 21K |
| N41/3 | Voice control system (VCS [SBS]) control unit | 4A |
| N41/3 | Voice control system (VCS [SBS]) control unit | 12A |
| W6 | Ground (left wheelhousing in trunk) | 2E |
| X25/8 | Overhead control panel and FFS [RBA] connector | 6E |
