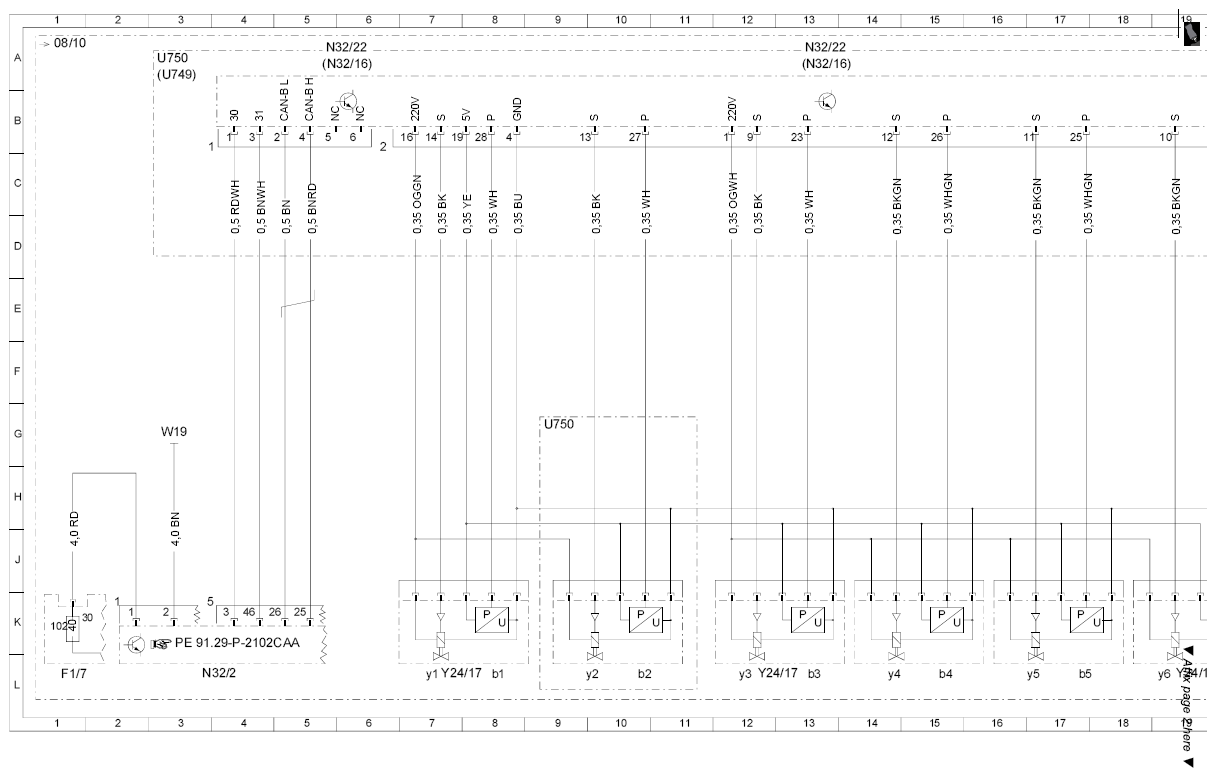

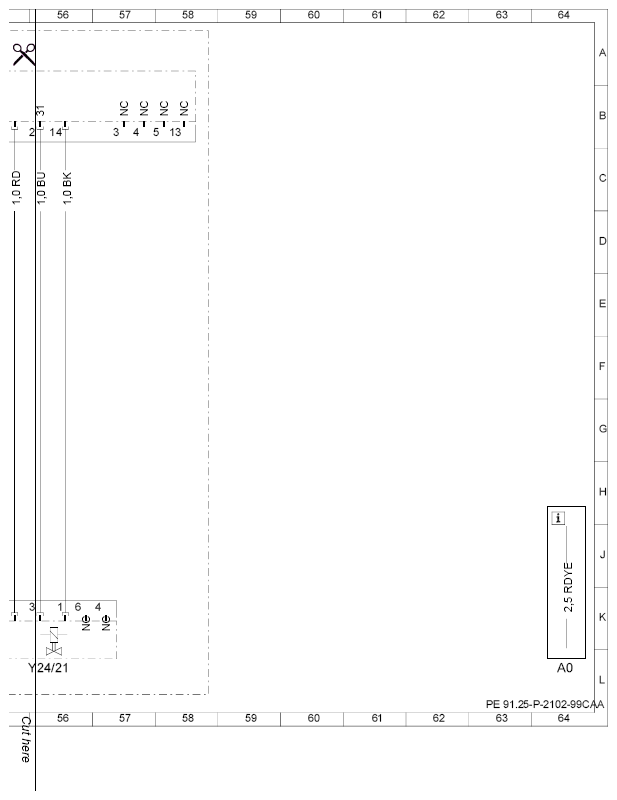

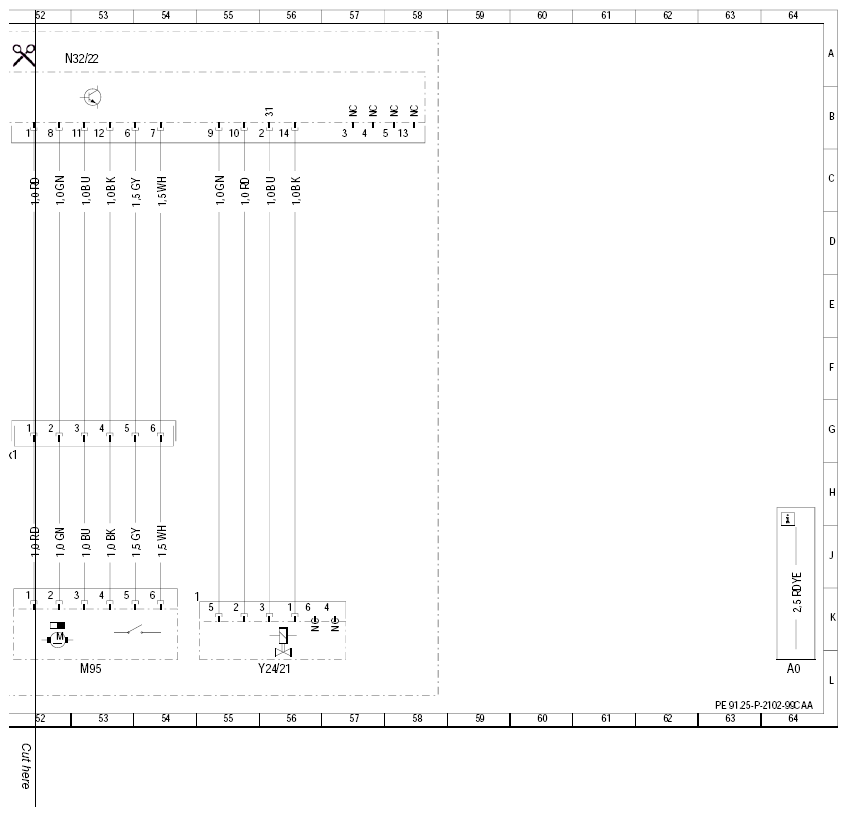

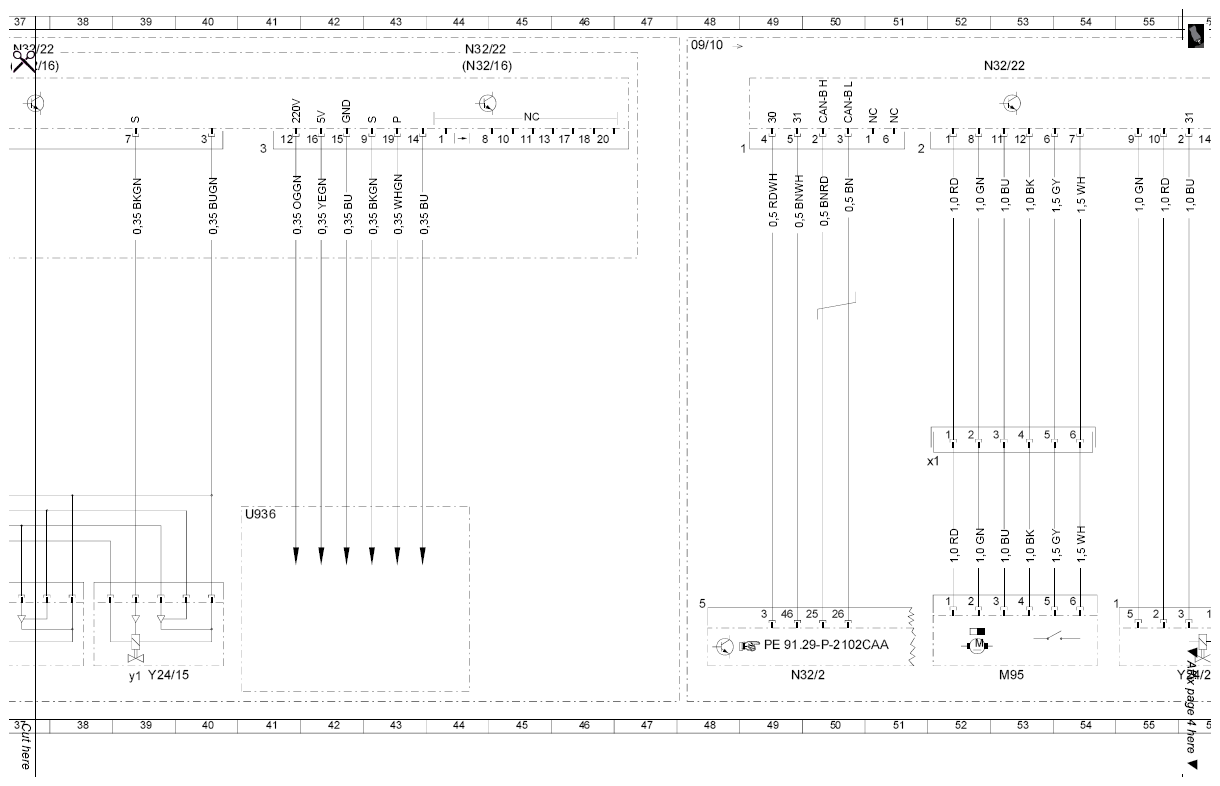

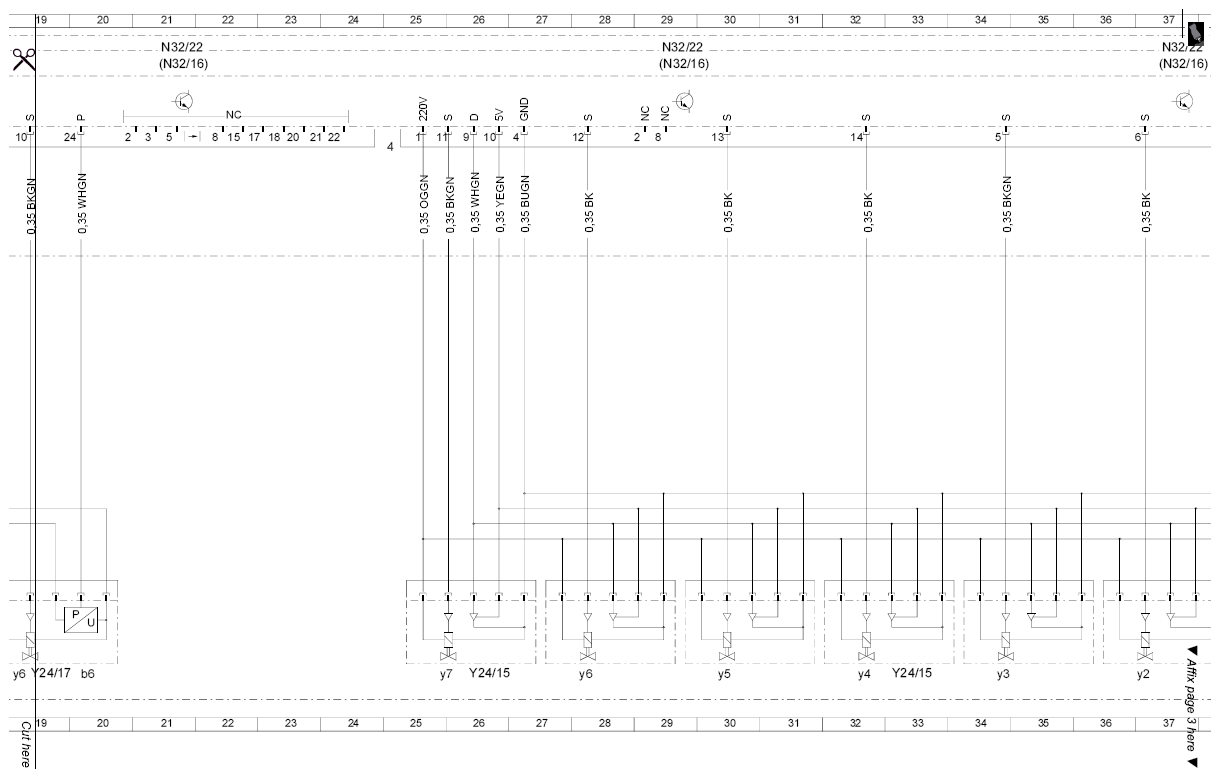

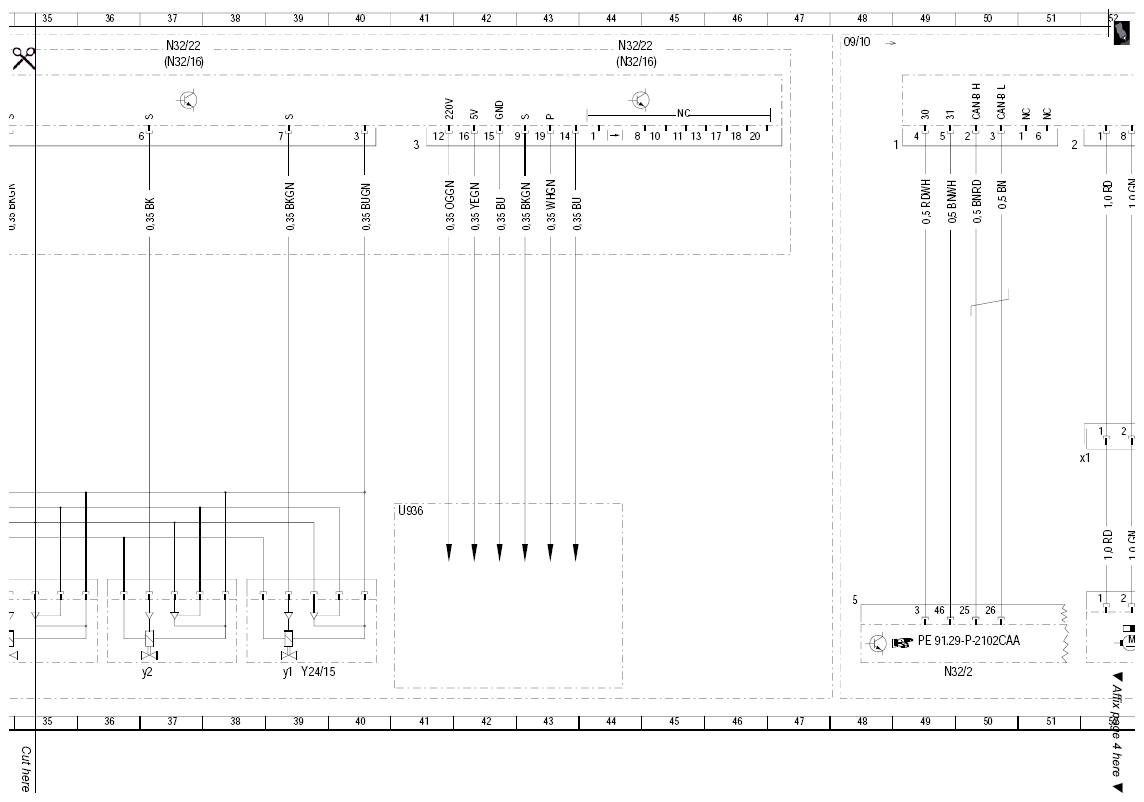

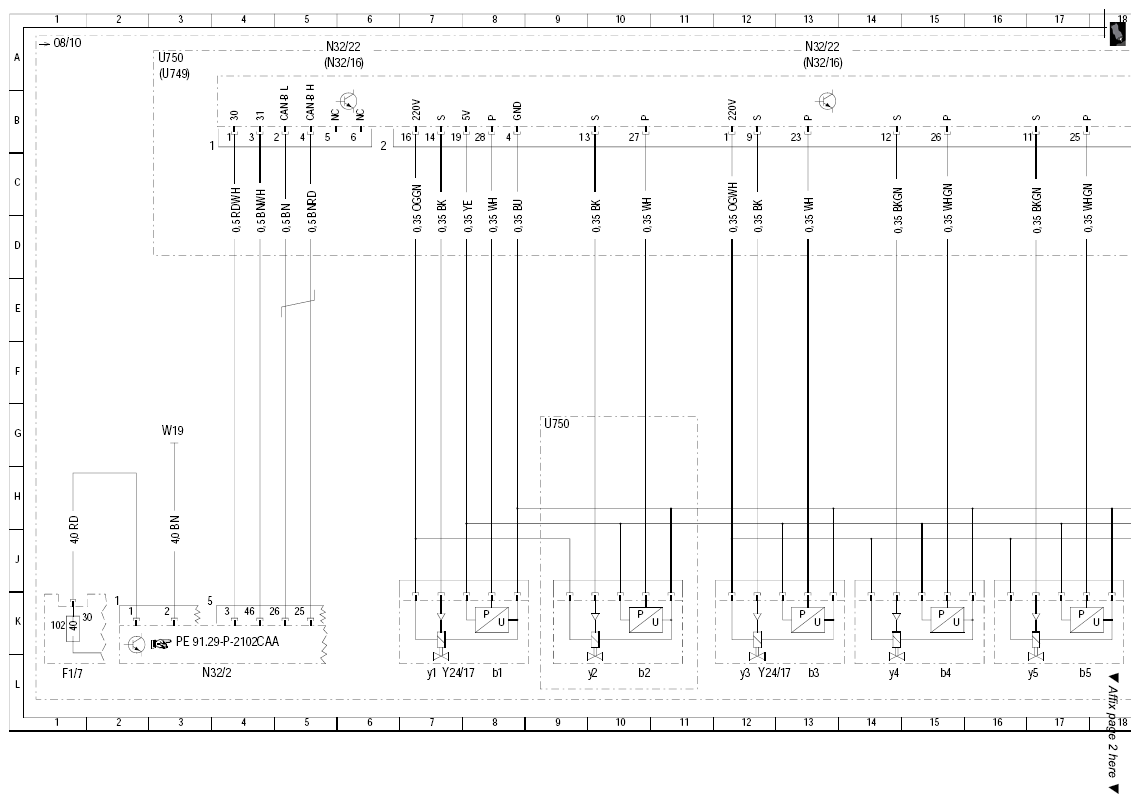

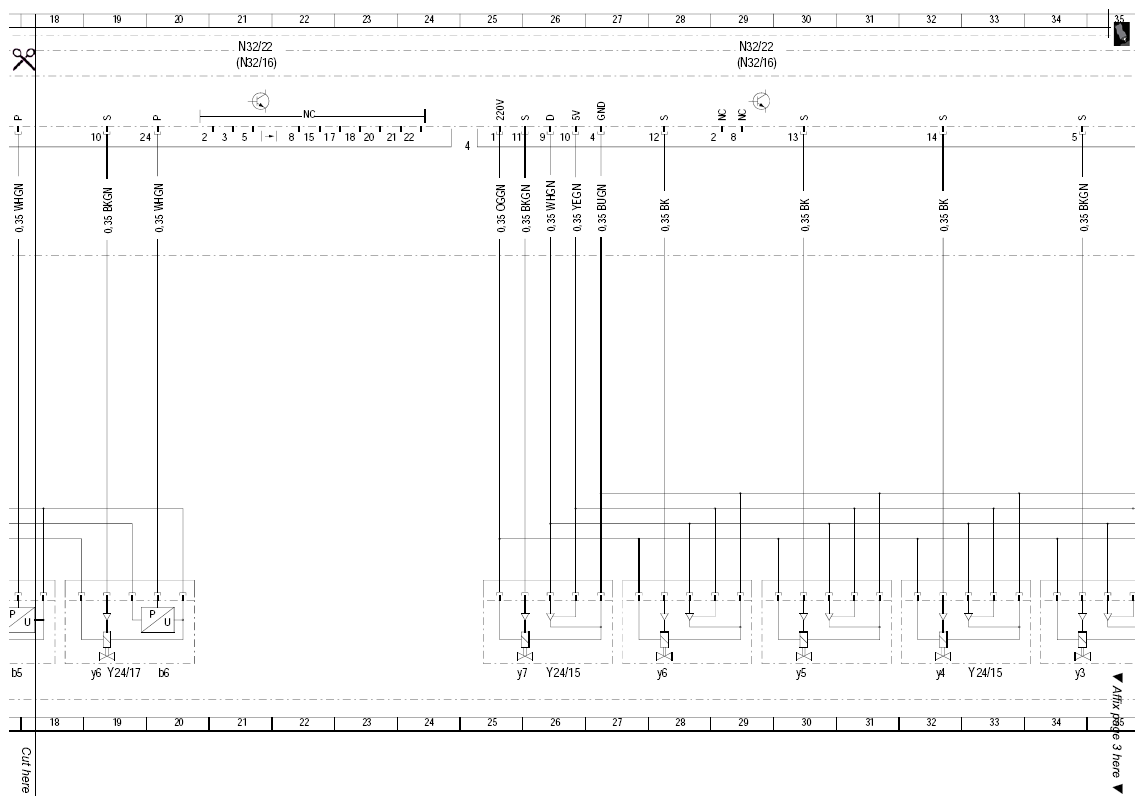

| A0 |
Explanation of color codes |
48L |
| F1/7 |
Left instrument panel fuse box |
1L |
| F1/7f102 |
Fuse 102 |
1K |
| N32/16 |
Right front multicontour backrest control module |
5A |
| N32/16 |
Right front multicontour backrest control module |
12A |
| N32/16 |
Right front multicontour backrest control module |
20A |
| N32/16 |
Right front multicontour backrest control module |
28A |
| N32/16 |
Right front multicontour backrest control module |
36A |
| N32/16 |
Right front multicontour backrest control module |
43A |
| N32/2 |
Right front seat control module |
3L |
| N32/22 |
Right front dynamic seat control module |
5A |
| N32/22 |
Right front dynamic seat control module |
12A |
| N32/22 |
Right front dynamic seat control module |
20A |
| N32/22 |
Right front dynamic seat control module |
28A |
| N32/22 |
Right front dynamic seat control module |
36A |
| N32/22 |
Right front dynamic seat control module |
43A |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
3A |
| U750 |
Valid for dynamic seat (DS [FDS]) |
3A |
| U900 |
Further line routing not clarified at time of publication |
39H |
| W19 |
Ground (right front seat crossmember) |
3G |
| Y24/15 |
Right front seat massage cushion valve group |
24L |
| Y24/15 |
Right front seat massage cushion valve group |
31L |
| Y24/15 |
Right front seat massage cushion valve group |
38L |
| Y24/15y1 |
Lower massage row 1 piezo valve |
37L |
| Y24/15y2 |
Lower massage row 2 piezo valve |
35L |
| Y24/15y3 |
Lower massage row 3 piezo valve |
33L |
| Y24/15y4 |
Lower massage row 4 piezo valve |
30L |
| Y24/15y5 |
Lower massage row 5 piezo valve |
28L |
| Y24/15y6 |
Lower massage row 6 piezo valve |
26L |
| Y24/15y7 |
Upper massage row piezo valve |
24L |
| Y24/17 |
Right front seat backrest cushion valve group |
7L |
| Y24/17 |
Right front seat backrest cushion valve group |
12L |
| Y24/17 |
Right front seat backrest cushion valve group |
18L |
| Y24/17b1 |
Left backrest lateral support cushion pressure sensor |
7L |
| Y24/17b2 |
Right backrest lateral support cushion pressure sensor |
10L |
| Y24/17b3 |
Shoulder cushion pressure sensor |
12L |
| Y24/17b4 |
Upper lumbar cushion pressure sensor |
14L |
| Y24/17b5 |
Central lumbar cushion pressure sensor |
16L |
| Y24/17b6 |
Lower lumbar cushion pressure sensor |
19L |
| Y24/17y1 |
Left backrest lateral support cushion piezo valve |
7L |
| Y24/17y2 |
Right backrest lateral support cushion piezo valve |
9L |
| Y24/17y3 |
Shoulder cushion piezo valve |
11L |
| Y24/17y4 |
Upper lumbar cushion piezo valve |
13L |
| Y24/17y5 |
Central lumbar cushion piezo valve |
16L |
| Y24/17y6 |
Lower lumbar cushion piezo valve |
18L |
