Staking tool for securing joint hub on rear halfshaft - WF58.50-P-3530-07P

Model 166, 170, 171, 172, 203, 204, 207, 208, 209, 211, 212, 215, 216, 218, 219, 220, 221, 230

  1. Grind the blade of a commercially available cape chisel to dimension "d".

Dimensions:

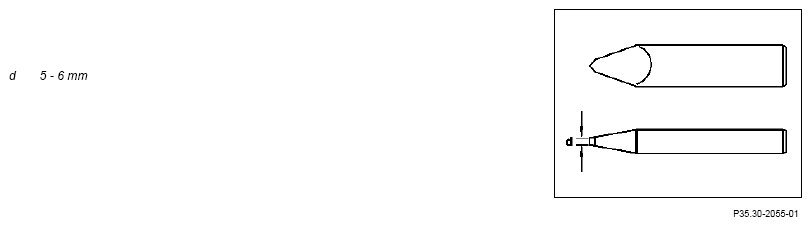

Fig 1: Identifying Cape Chisel Blade Grinding Dimensions
G07634786Courtesy of MERCEDES-BENZ USA
