Rod for opening the reed valve in the air/ water duct - WF58.50-P-8310-01A

Fabricate rod with rounded ends using the following specification:

Make a mark 20 cm from one end (arrow).

Material: Wood, plastic or metal

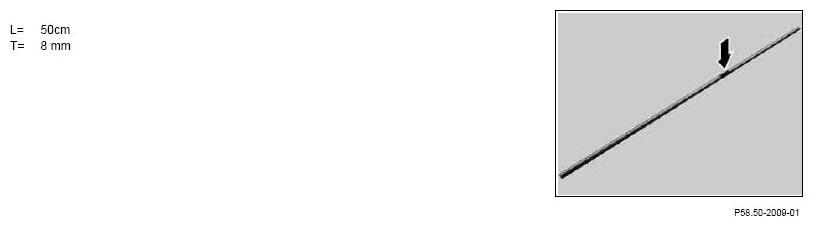

Fig 1: Identifying Rod Mark

Courtesy of MERCEDES-BENZ USA
