Puller hook for lower part of clip on sliding/ pop-up roof trim - WF58.50-P-7720-03A

All models

  1. Fabricate puller hook using welding wire ø(2 mm dia.)
NOTE: Fabricate puller hook (arrow), so that it passes through opening at bottom of clip.

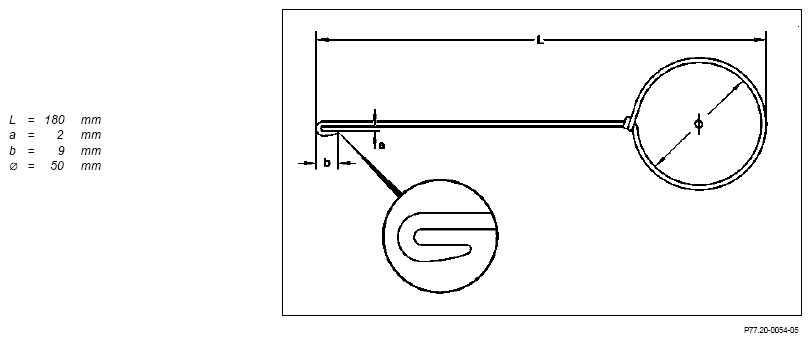

Fig 1: Identifying Puller Hook Dimensions
G07634789Courtesy of MERCEDES-BENZ USA
