Guard plate for radiator/condenser - WF58.50-P-0110-01A

Make protective plate from sheet metal or plastic for attaching to radiator and condenser.

Dimensions:

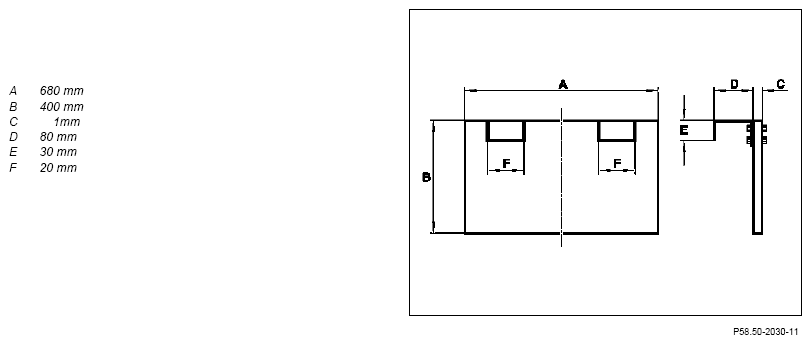

Fig 1: Identifying Protective Plate Dimensions
G07634783Courtesy of MERCEDES-BENZ USA
