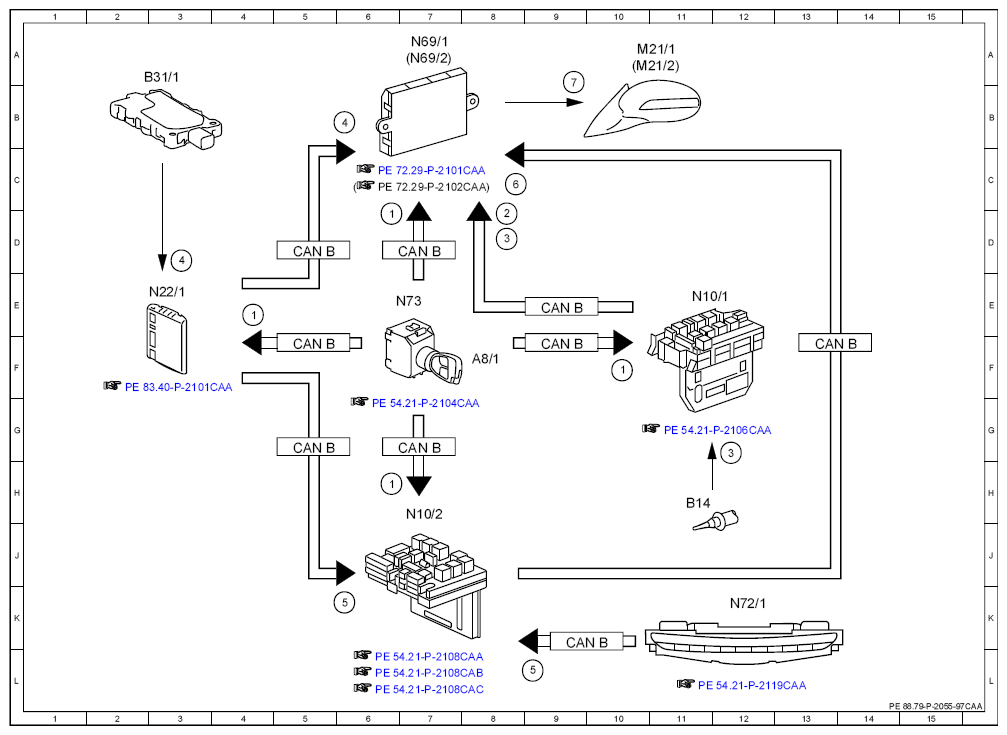

| 1 |
Circuit 15, status |
6C |
| 1 |
Circuit 15, status |
4E |
| 1 |
Circuit 15, status |
6H |
| 1 |
Circuit 15, status |
10F |
| 2 |
Circuit 61, status |
8D |
| 3 |
Outside temperature indicator temperature sensor, signal |
8D |
| 3 |
Outside temperature indicator temperature sensor, signal |
12G |
| 4 |
Dew point sensor, signal |
3D |
| 4 |
Dew point sensor, signal |
6B |
| 5 |
Rear window heater, request |
9L |
| 5 |
Rear window heater, request |
6K |
| 6 |
Rear window heater, status |
8C |
| 7 |
Mirror heater, actuation |
9B |
| A8/1 |
Transmitter key |
7F |
| B14 |
Outside temperature display temperature sensor |
12H |
| B31/1 |
AAC [KLA] multifunction sensor |
3B |
| CAN B |
Interior CAN |
5D |
| CAN B |
Interior CAN |
7D |
| CAN B |
Interior CAN |
5F |
| CAN B |
Interior CAN |
9F |
| CAN B |
Interior CAN |
9E |
| CAN B |
Interior CAN |
13F |
| CAN B |
Interior CAN |
5G |
| CAN B |
Interior CAN |
7G |
| CAN B |
Interior CAN |
9K |
| M21/1 |
Left electrically adjustable and heated outside mirror |
10B |
| M21/2 |
Right electrically adjustable and heated outside mirror |
10B |
| N10/1 |
Front SAM control unit with fuse and relay module |
11F |
| N10/2 |
Rear SAM control unit with fuse and relay module |
7J |
| N22/1 |
AAC [KLA] control unit |
3F |
| N69/1 |
Left door control unit |
7B |
| N69/2 |
Right door control unit |
7B |
| N72/1 |
Upper control panel control unit |
12K |
| N73 |
EIS [EZS] control unit |
7F |
