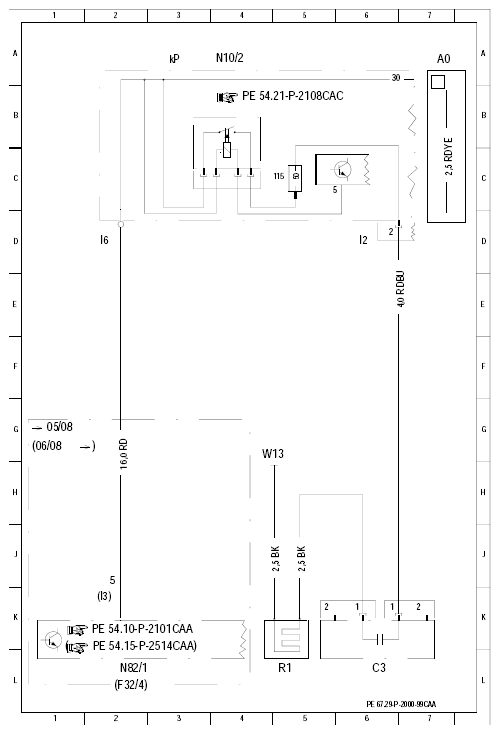

Electric wiring diagram for heated rear window - PE67.29 - P-2000-99CAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 7 A |
| C3 | Electrolytic capacitor (rear window noise suppressor) | 6 L |
| N10/2 | Rear SAM control module with fuse and relay module | 4 A |
| N10/2f115 | Fuse 115 | 3 C |
| N10/2kP | Rear window defroster relay | 3 A |
| N82/1 | Vehicle power supply control unit | 2 L |
| R1 | Heated rear window | 5 L |
| W13 | Ground (rear window defroster) | 4 H |
