Backup camera component description - GF54.65-P-5040SX
MODEL 221.0 /1, 216.3 with CODE (218) Backup camera up to Model Year 8

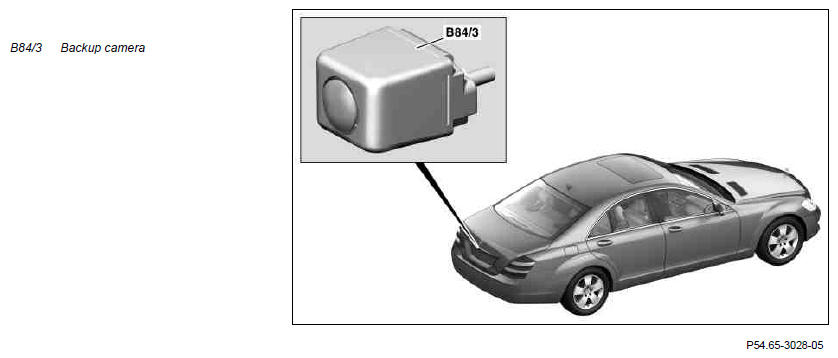

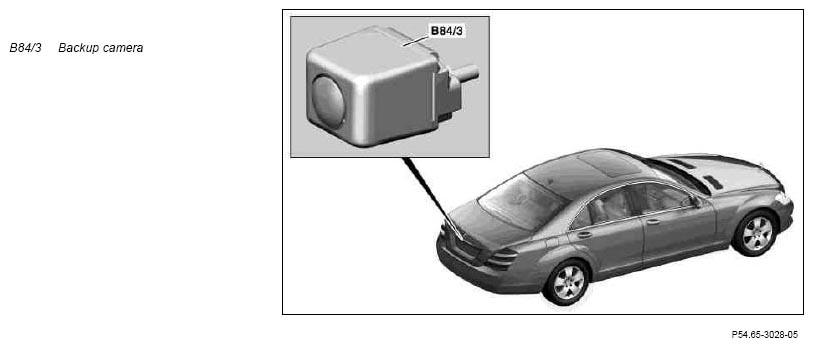

Shown on model 221.0
Location
The backup camera is mounted to the trunk lid next to the left license plate lamp (E19/1).
Task
- Surrounding area image of complete rear area
- Providing the camera pictures via a composite Video Baseband Signal for the backup camera control unit (N66/2)
Design
The backup camera is a color image camera with wide-angle lens.
