Line up rear wall window in the body opening - AR67.20-P-2000-04CW

TEST AND ADJUSTMENT VALUES FOR REAR WALL WINDOW

Number	Designation		Model 204.0	Model 204.2/9
BE67.20-P-1001-01L	Distance between top edge of rear window and transition between rabbet and rear edge of roof	mm	4.5 (±0.5)	-
BE67.20-P-1002-01L	Interval between bottom edge of rear window and edge of rear-end door panel	mm	-	2.5

TEST AND ADJUSTMENT VALUES FOR REAR WALL WINDOW

Number	Designation		Model 204.3
BE67.20-P-1001-01L	Distance between top edge of rear window and transition between rabbet and rear edge of roof	mm	5 (±1)
BE67.20-P-1002-01L	Interval between bottom edge of rear window and edge of rear-end door panel	mm	-

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Shown on model 204.0

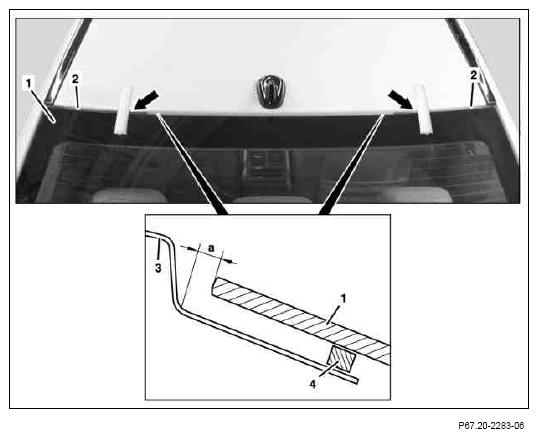

Position rear window (1) on spacers (4) on body flange (3) with aid of helper, align rear window (1) at top according to dimension (a) and center at sides. Cup suction tool

Fig 2: Aligning Rear Window At Top According To Dimension And Center At Sides
Courtesy of MERCEDES-BENZ USA
Glue on suitable adhesive strips (arrows) and cut at top edge of left and right rubber gasket (2) on rear window (1).
Remove rear window (1) from body flange (3) with aid of helper.
