Keyless Go, block diagram - GF80.61-P-0005-02CW

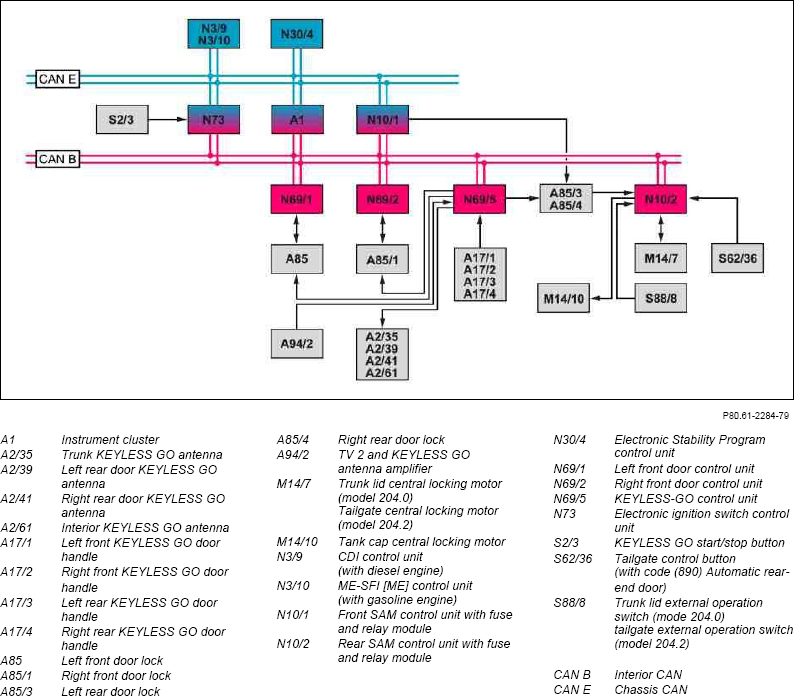

Fig 1: Keyless Go Block Diagram

G07531901

Courtesy of MERCEDES-BENZ USA
