Retrofit rear entertainment wiring harness - AZ82.60-P-0015-02CYA

Routing diagram

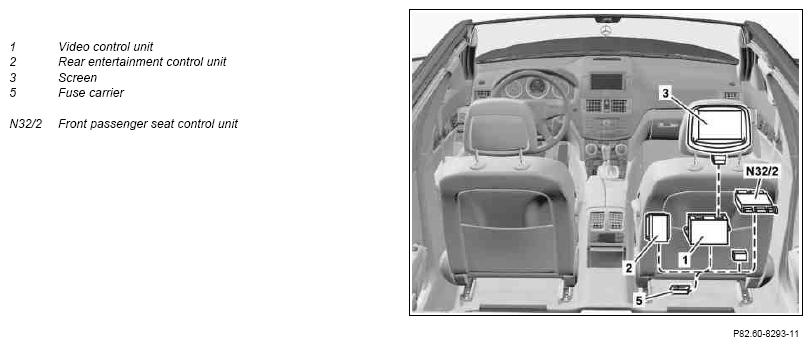

Fig 1: Identifying Retrofit Rear Entertainment Wiring Harness - Routing Diagram

Courtesy of MERCEDES-BENZ USA

Connection scheme

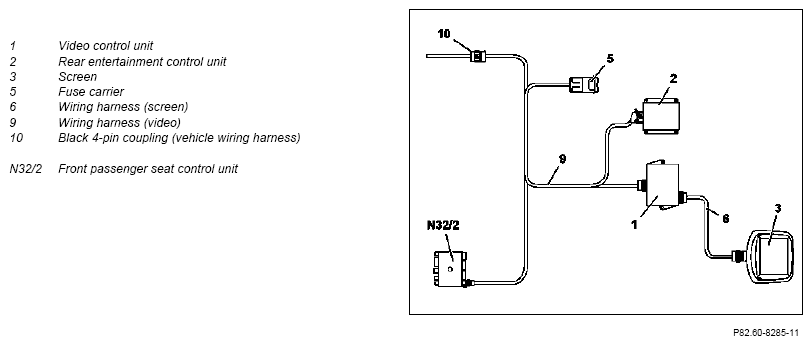

Fig 2: Identifying Retrofit Rear Entertainment Wiring Harness - Connection Scheme

Courtesy of MERCEDES-BENZ USA

Ensure that the wiring harnesses are not damaged by chafing or being trapped otherwise the appropriate wiring harness must be replaced.

The following operation steps are shown on the right side of the vehicle and can be accomplished analogously on the left side of the vehicle.

1. Route wiring harness (6) from previously created opening in backrest to video control unit (1).

   The video control unit (1) is only placed in the seat and is installed at a later point.

2. Connect wiring harness (6) to video control unit (1).

   The white 12-pin coupling (23) is connected at a later point. The connections at video control unit (1) are coded and cannot be swapped.

3. Fasten wiring harness (6) at seat frame using cable ties.
4. Strap down excess length of line from wiring harness (6) using cable ties.

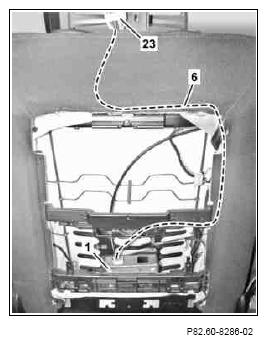

   Fig 3: Identifying White 12-Pin Coupling, Wiring Harness And Video Control Unit

   Courtesy of MERCEDES-BENZ USA
5. Route wiring harness (9) from rear entertainment control unit (2) to front passenger seat control unit (N32/2).

   The rear entertainment control unit (2) is only placed in the seat and is fastened at a later point.

6. Connect wiring harness (9) to rear entertainment control unit (2) and to video control unit (1).
7. Fasten wiring harness (9) at seat frame using cable ties.

   Take care that the adjustment mechanism of the seat is not impaired by the installation of lines, as this may lead to shearing or crushing of the wiring harness (9).

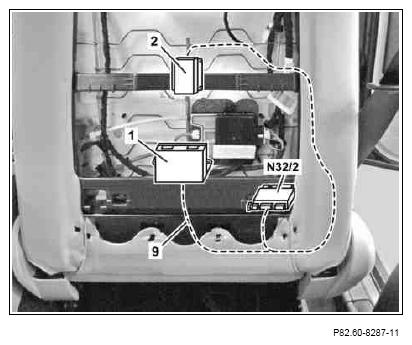

   Fig 4: Identifying Connection Of Wiring Harness To Rear Entertainment And Video Control Units

   Courtesy of MERCEDES-BENZ USA
8. Detach black 4-pin coupling (10) of vehicle wiring harness from front passenger seat control unit (N32/2) and connect to black 4-pin connector (24) of wiring harness (9).
9. Attach black 4-pin coupling of wiring harness (9) at front passenger seat control unit (N32/2) on left outer slot.
10. Fasten wiring harness (9) at seat frame using cable ties.

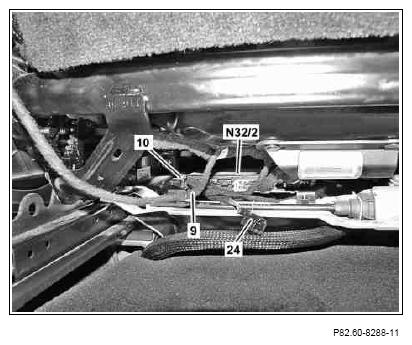

    Fig 5: Identifying Front Passenger Seat Control Unit, Black 4-Pin Coupling, Connector And Wiring Harness

    Courtesy of MERCEDES-BENZ USA
