Retrofit rear entertainment control unit - AZ82.60-P-0015-01CW

Bond felt tape onto video control unit (1).
The side of the video control unit (1) with the mounting brackets is not bonded.

Fig 1: Identifying Video Control Unit
Courtesy of MERCEDES-BENZ USA
Glue down video control unit (1) at lower cross strut (22) of seat frame with velcro strip (21).
The bonding areas must be free of dust and grease in order to prevent adhesion problems.

Fig 2: Identifying Video Control Unit On Lower Cross Strut Of Seat Frame With Velcro Strip
Courtesy of MERCEDES-BENZ USA

Only perform the following operation steps on vehicles with code (275) Memory package (driver seat, steering column, mirrors).
Bond felt tape onto control unit (2).
Do not bond the bottom of the control unit (2).

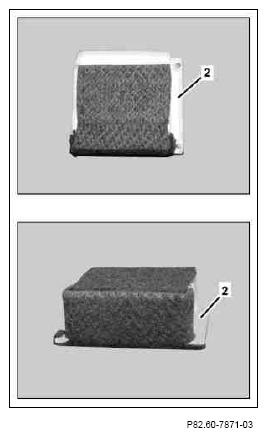

Fig 3: Identifying Control Unit
Courtesy of MERCEDES-BENZ USA
Fasten control unit (2) at upper cross strut (22) using velcro strip (21).
The bonding areas must be free of dust and grease in order to prevent adhesion problems.

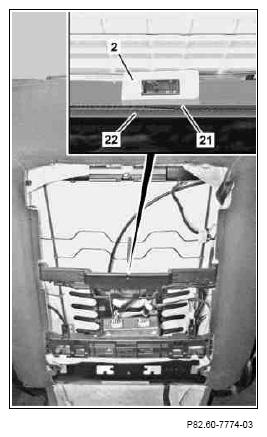

Fig 4: Identifying Control Unit On Upper Cross Strut Using Velcro Strip
Courtesy of MERCEDES-BENZ USA
