Retrofit iPhone kit - AZ82.70-P-0013CW

MODEL 204.0## /2## (except 204.07 /27) 1# up to 28.2.11 up to model year 2011 with CODE (386) Comfort telephony

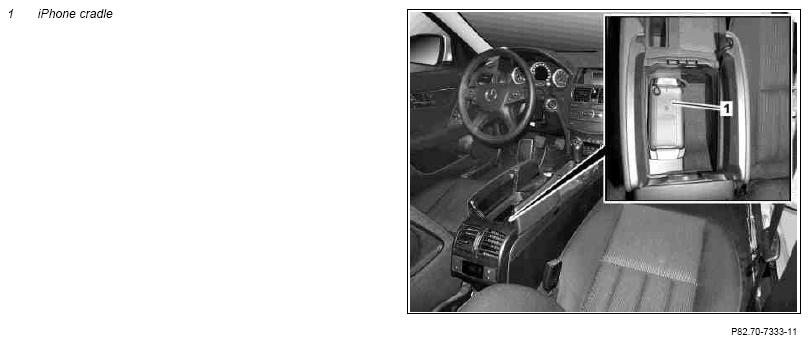

Fig 1: Identifying iPhone Cradle

Courtesy of MERCEDES-BENZ USA

	Removing
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove center console		AR68.20-P-2000CW
2	Remove cover below right dashboard		AR68.10-P-1520CW
	Install
3	Retrofit iPod interface Only if no iPod interface is installed. Do not fully install the iPod interface, leave it lying in the front passenger footwell. It is not necessary to make a cutout in the glove box and to route the corresponding lines. Do not complete vehicle. Only the iPod interface wiring harness and the iPod interface are required.		AZ82.60-P-0014CW
4	Retrofit iPhone kit wiring harness with iPhone adapter (1)	After installing the iPhone kit, the iPod interface can no longer be used to connect an iPod.	AZ82.70-P-0013-01CWX
5	Install remaining parts
6	Check iPhone kit for proper operation
7	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "iPhone kit retrofitted as per AZ82.70-P-0013CW " under field organization texts to design group 82.
