Retrofit GPS antenna - AZ82.61-P-0003-02CW

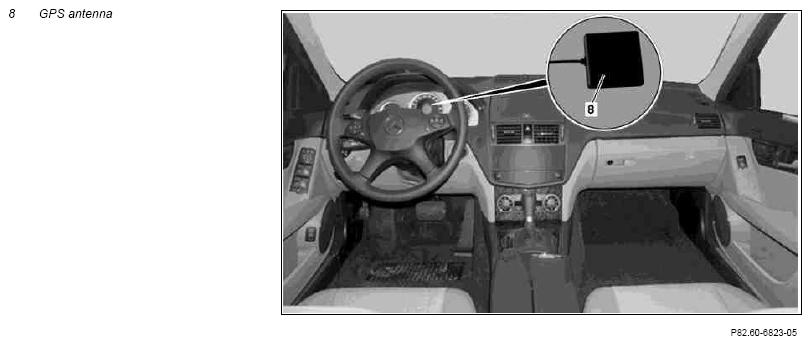

Fig 1: Identifying GPS Antenna

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying GPS Antenna, Plug And Line

Courtesy of MERCEDES-BENZ USA

Use adhesive tape to attach GPS antenna (8) to suitable position behind the dashboard.
The side labeled "TOP" must face upwards. The bonding surface must be free of dust and grease. Care should be taken to ensure that there is no screening effect through metal covering up the GPS antenna.
Route the GPS antenna line (23) along the vehicle's own lines and into the right-hand footwell and fasten into place.
Do not damage the GPS antenna line by crushing it or jamming it.

The GPS antenna plug (9) is connected at a later stage to the control unit.

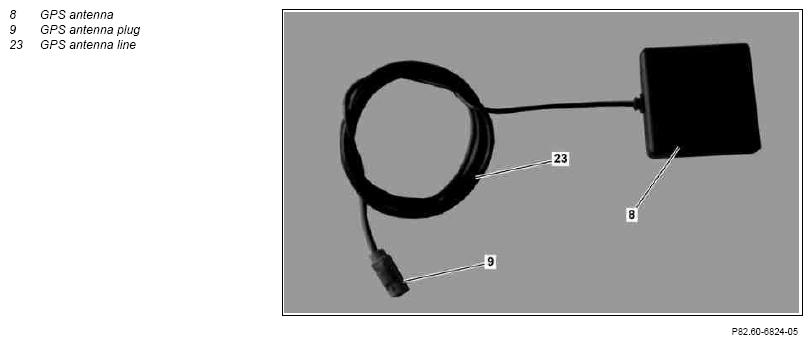

Fig 3: Identifying GPS Antenna And Line
Courtesy of MERCEDES-BENZ USA
