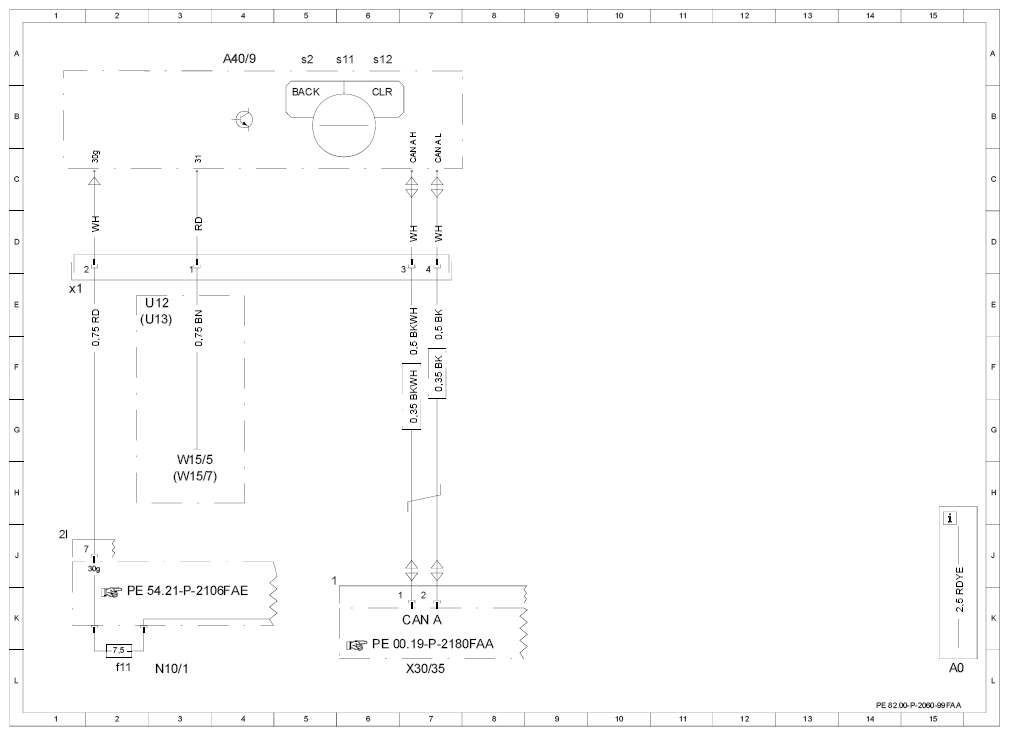

Wiring diagram, front central operating unit - PE82.00-P-2060-99FAA
MODEL 204
with CODE 510 (Audio 20 with CD changer)
with CODE 511 (Audio 50 APS with DVD changer)
with CODE 512 (COMAND APS with DVD changer)
with CODE 523 (MB Audio 20 radio)
with CODE 525 (MB Audio 50 APS radio)
with CODE 527
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 15L |
| A40/9 | Audio/COMAND control panel | 4A |
| A40/9s11 | Audio/COMAND controller | 5A |
| A40/9s12 | "Delete" button | 6A |
| A40/9s2 | "Back" button | 5A |
| A40/9x1 | Audio/COMAND control panel electrical connector | 1D |
| CAN A | Telematics CAN | 7K |
| N10/1 | Front SAM control module with fuse and relay module | 3L |
| N10/1f11 | Fuse 11 | 2L |
| U12 | Valid for left-hand steering | 2E |
| U13 | Valid for right-hand steering | 2E |
| W15/5 | Left front footwell ground point | 3G |
| W15/7 | Right front footwell ground point | 3G |
| X30/35 | Telematics CAN voltage distributor electrical connector | 7L |
