Remove/install speakers in side paneling (rear) - AR82.62-P-7837V

MODEL 171.4 with CODE (523) MB Audio 20 radio with CODE (525) MB Audio 50 APS radio with CODE (527) COMAND APS with single DVD drive (with navigation) with CODE (529) HIGH Class Japan with CODE (530) COMAND APS USA (with navigation system) with CODE (533) Front and rear speakers -without radio-

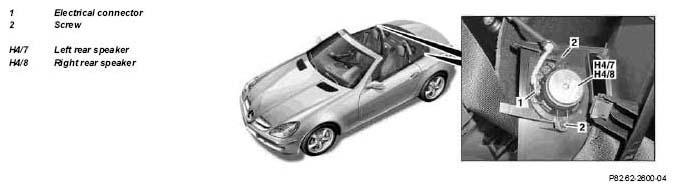

Fig 1: Identifying Speakers In Side Paneling (Rear) Components
G05030682Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/Install
1 Undo left or right paneling at center pillar top IMPORTANT Do not unscrew bolt to belt end fitting. AR68.30-P-1077V
2 Disconnect electrical connector (1).
3 Unscrew bolts (2) and remove left rear speaker (H4/7) and right rear speaker (H4/8)
4 Install in the reverse order
