Retrofit telephone antenna - AZ82.70-P-0110V
Model 171.4
| Remove | |||
|---|---|---|---|
| Risk of explosion from oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers. |
||
| 1 | Disconnect battery ground cable | ||
| AR54.10-P-0003V | |||
| Notes on battery | All models | ||
| 2 | Remove lining on the right-hand side of the luggage compartment | ||
| AR68.30-P-4800V | |||
| 3 | Remove paneling in center of luggage compartment | ||
| AR68.30-P-4810VA | |||
| 4 | Remove rear bumper | Model 171.4 except CODE (220a) Parktronic system (PTS) | |
| AR88.20-P-2200V | |||
| 5 | Remove right seat belt | ||
| AR91.40-P-1030V | |||
| 6 | Remove paneling in right footwell | ||
| AR68.30-P-4010V | |||
| Install | |||

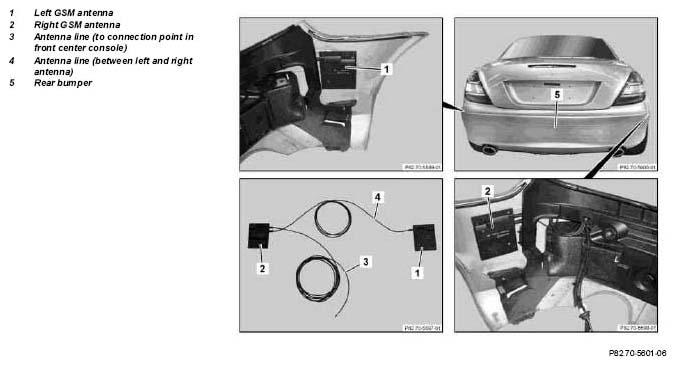

| 7 | Retrofit GSM antenna | AZ82.70-P-0009-02VV | |
| Glue cartridge* | *BR00.45-Z-1016-02A | ||
| 8 | Install remaining parts onto vehicle |
REPAIR MATERIALS
| Number | Designation |
|---|---|
| BR00.45-Z-1016-02A | Glue cartridge (150 ml) for glued windows |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 788 50 10 | GSM antenna | 1 |
| A140 997 54 81 | Grommet (only for vehicles without Code 220 Parktronic system (PTS) | as required |
