Block diagram of exterior lights with code (614) Bi-xenon headlamp unit or code (618) Bi-xenon headlamp - GF82.10-P-0003-03RCA

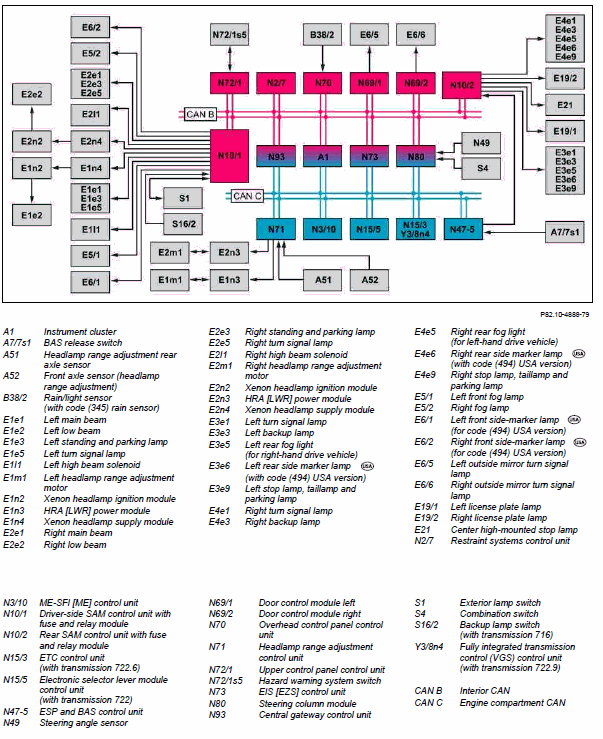

Fig 1: Exterior Light Block Diagram

G00541401

Courtesy of MERCEDES-BENZ USA
