Remove/install side air nozzle - AR83.10-P-4740V

MODELS 171.4

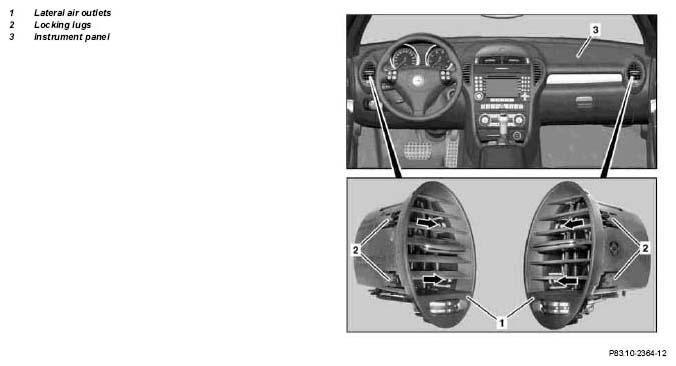

Fig 1: Identifying Lateral Air Outlets, Instrument Panel And Locking Lugs

Courtesy of MERCEDES-BENZ USA

	Removal/installation
1.1	Adjust the steering column backwards and downwards into its final position	When removing lateral air outlet (1) on driver side. See Operating Instructions
2	Insert pulling hook in to the recess clearance (arrows), release locking lugs (2) and withdraw lateral air outlet (1) from the instrument panel (3)	Installation:  Make sure that the lateral air outlet (1) is correctly seated in the instrument panel (3)	Fig 2
3	Install in the reverse order

Fig 2: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
