Remove/install trim strip on instrument panel - AR68.10-P-1180V

MODEL 171.4

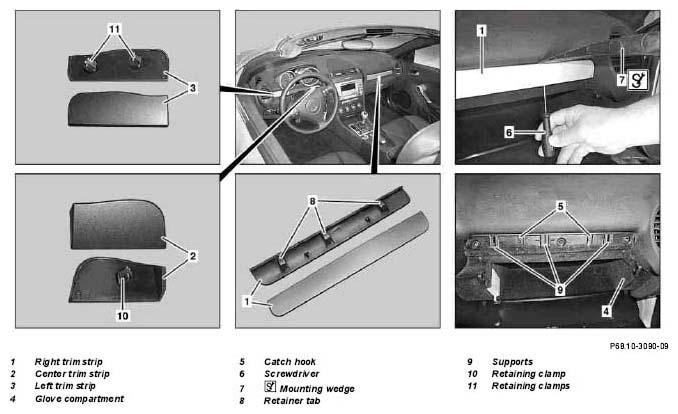

Fig 1: Identifying Trim Strip On Instrument Panel Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Open glove compartment (4)	See Operating Instructions
2	Unlock catch hook (5) with suitable screwdriver (6) and simultaneously unclip right trim strip (1) from glove compartment (4) downward with mounting wedge (7)	Push right trim strip (1) into mounts (9) for glove compartment (4) from bottom with retainer tabs (8) and secure with catch hook (5).
			Figure
3	Unclip center trim strip (2) from retaining clamp (10) on instrument panel with mounting wedge		Figure
4	Unclip left trim strip (3) from retaining clamps (11) on instrument panel with mounting wedge		Figure
5	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
