Remove/install jacket on instrument panel carrier - AR68.10-P-1111-01V
JACKET TUBE
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA46.10-P-1004-03N | Bottom screw for jacket tube on cross member below instrument panel | Nm | 20 |
| BA46.10-P-1005-03N | Upper screw for jacket tube on cross member below instrument panel | Nm | 20 |

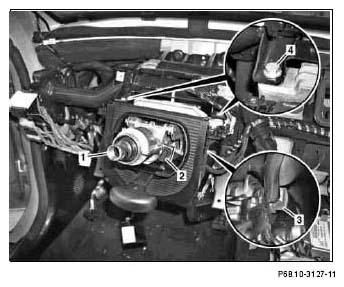

- Unclip connector (2) from jacket tube (1) with suitable screwdriver.
- Disconnect electrical connector from electric steering lock control unit
- Unscrew bolt (3).
- Unscrew bolts (4) and lower jacket tube (1) into footwell
- Reinstall in reverse order.
