Remove/install accelerator pedal - AR30.12-P-1321V
ENGINE 271.944 in Model 171.442
ENGINE 272.942 in MODEL 171.454
ENGINE 272.963 in MODEL 171.456
ENGINE 113.989 in MODEL 171.473
| Remove/Install | |||
|---|---|---|---|
| 1 | Turn key in ignition lock (electronic ignition switch control unit) to position "0" | ||
| 2 | Remove left cover below instrument panel | AR68.10-P-1500V | |

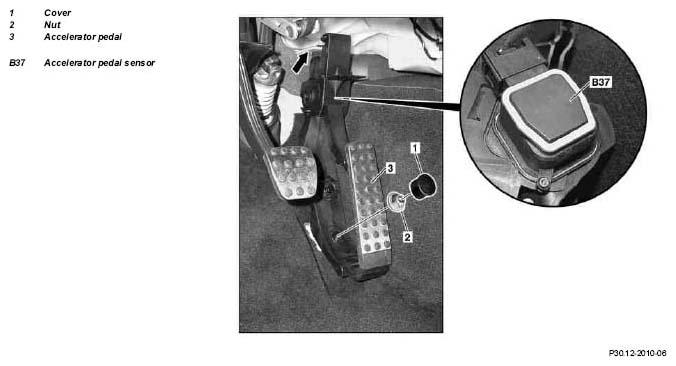

| 3 | Pry out cover (1) | ||
| 4 | Unscrew nut (2) | *BA30.20-P-1001-03A | |
| 5 | Lift off accelerator pedal (3) from stud and pull out of retaining panel (arrow) toward bottom | ||
| 6 | Disconnect the electrical connector from the accelerator pedal sensor (B37) and remove the accelerator pedal (3) | ||
| 7 | Install in the reverse order | ||
| 8 | Read out fault memory | STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
ACCELERATOR PEDAL
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA30.20-P-1001-03A | Nut of accelerator pedal to floor panel | Nm | 8 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
