Valve body gasket modified. - BT40.15-P-0080-01A
MODELS 199, 210, 211 up to 31.5.05, 215, 219.3 up to 31.5.05, 220, 230 up to 31.5.05, 240 with CODE (475) Tire pressure monitor (Beru)
| Number | Designation | Model 199 with Beru system | |||
|---|---|---|---|---|---|
| BA40.15-P-1001-01A | Union nut to valve body | Hump seal | Nm | 4 | |
| O-ring | Nm | 6 | |||
| See picture in | BT40.15-P-0080-01A | ||||
| Number | Designation | Model 210, 211, 215, 220, 230, 240 with Beru system | |||
|---|---|---|---|---|---|
| BA40.15-P-1001-01A | Union nut to valve body | Hump seal | Nm | 4 | |
| O-ring | Nm | 6 | |||
| See picture in | BT40.15-P-0080-01A | ||||
| Number | Designation | Model 219 with Beru system | |||
|---|---|---|---|---|---|
| BA40.15-P-1001-01A | Union nut to valve body | Hump seal | Nm | 4 | |
| O-ring | Nm | 6 | |||
| See picture in | BT40.15-P-0080-01A | ||||

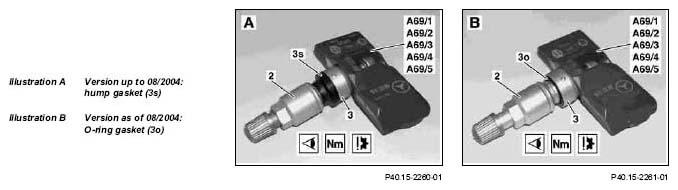

The gasket on the valve body (3) of the TPM wheel sensor (A69/1 to A69/5) has been modified. As of 08/2004 an O-ring (3o) replaces the hump gasket (3s).
Observe tightening torques for different gasket versions A union nut (2) which is tightened incorrectly leads to wheel leaks or damage to the valve body (3) or TPM wheel sensor (A69/1 to A69/5).
On disk wheels model 211, 215, 220 and 230 (all to 12/2002) may only valve bodies (3) with hump gasket (3s) may be fitted otherwise the wheel will leak.
