Diagnostic connector, design - GF54.22-P-2100-02R

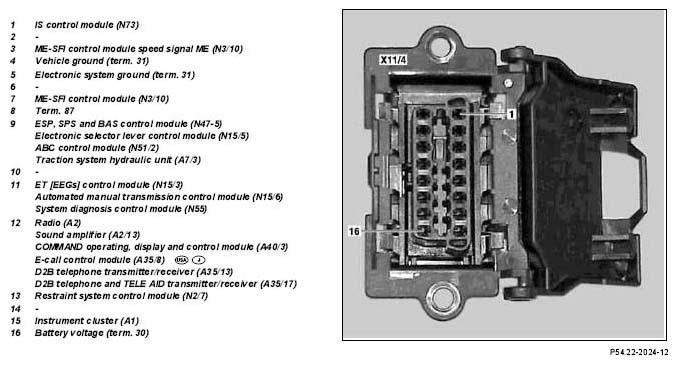

Diagnostic connector pin assignments (X11/4)

Fig 1: Identifying Diagnostic Connector Pin Design

G05075922

Courtesy of MERCEDES-BENZ USA
