Removing and installing keyless go antenna - AR82.62-P-8000RD

MODEL 230.4 as of 1.3.06

with CODE (889) Keyless-Go

except CODE (P99) "AMG Black Series" special model

In trunk

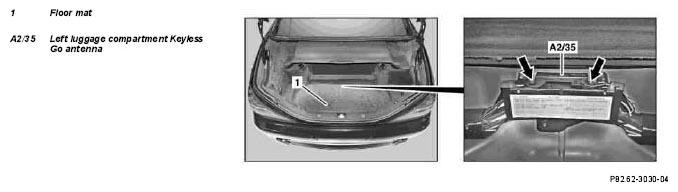

Fig 1: Identifying Left Luggage Compartment Keyless Go Antenna And Floor Mat

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off the ignition and remove the transmitter key from the EIS control unit	Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove the Keyless Go transmitter card or transmitter key from the vehicle and store beyond the reach of the transmitter (min. 2 m).
2	Open trunk lid
3	Open trunk partition
4	Take floor covering (1) out of luggage compartment
5.1	Remove spare wheel	On vehicles with code (669) spare tire on steel rim
5.2	Remove trunk recess	On vehicles without code (669) Spare wheel with steel rim
6.1	Remove vehicle tool kit and TIREFIT bracket	On vehicles without code (669) Spare wheel with steel rim
7	Disconnect electrical connector for left luggage compartment Keyless Go antenna (A2/35)
8	Expose electrical wiring harness for left luggage compartment Keyless Go antenna (A2/35)
9	Lift catch tabs (arrows) and remove left luggage compartment Keyless Go antenna (A2/35)	Installation:  Ensure left luggage compartment Keyless Go antenna (A2/35) is installed correctly.
10	Install in the reverse order
