Removing and installing keyless go antenna - AR82.62-P-8000RA

MODEL 230.4 up to 28.2.06 with CODE (889) Keyless Go In trunk

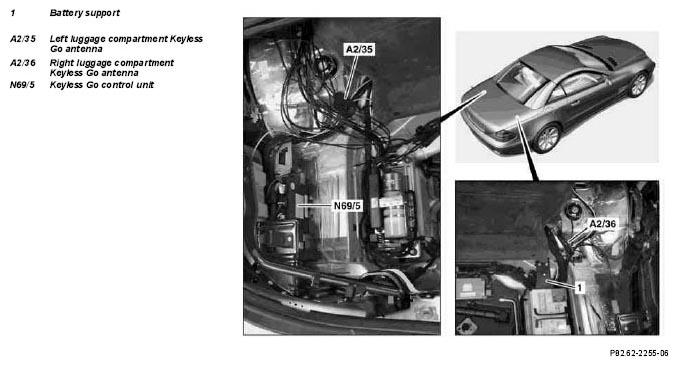

Fig 1: Identifying Keyless Go Antenna Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off the ignition and remove the transmitter key from the EIS control unit	Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove the Keyless Go transmitter card or transmitter key from the vehicle and store beyond the reach of the transmitter (min. 2 m).
2.1	Remove left side paneling in trunk	When removing left luggage compartment Keyless Go antenna (A2/35).	AR68.30-P-4800R
2.2	Remove left and right side paneling in trunk	When removing right luggage compartment Keyless Go antenna (A2/36).	AR68.30-P-4800R
3.1	Remove battery support (1)	When removing right luggage compartment Keyless Go antenna (A2/36).
4	Detach left luggage compartment Keyless Go antenna (A2/35) or right luggage compartment Keyless Go antenna (A2/36) and expose antenna line
5	Disconnect electrical connector for left luggage compartment Keyless Go antenna (A2/35) or right luggage compartment Keyless Go antenna (A2/36) from Keyless Go control unit (N69/5)
6	Install in the reverse order
